Cabinet Compact Wall Pu Seal Stainless Steel
Cabinet Compact Wall Pu Seal Stainless Steel

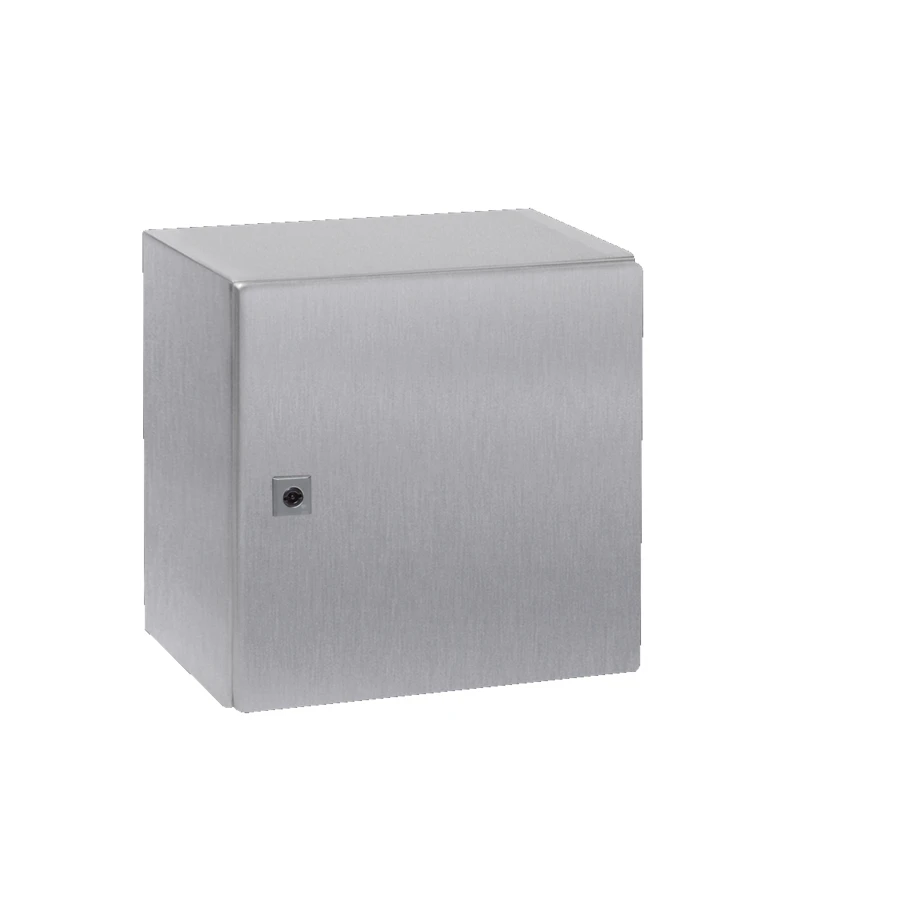

Cabinet Compact Wall Pu Seal Stainless Steel - Image 2

Cabinet Compact Wall Pu Seal Stainless Steel

£297.80 Incl. VAT

AE Compact enclosure, WHD: 300x300x210 mm, stainless steel 1.4301, with mounting plate, single-door, with one cam lock · · · 275 x 254mm mounting plate · · NEMA 4X protection · · 3mm double-bit lock insert · · IP66 rated · · IK08 protection · · Consistent with the entire Acti 9 offer · · Compliance with standards: EN 61095 and CEI 1095 · · Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B. · · The maximum switching operations is 100 per day. · · The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1003600 Categories: , , Brand: Part Number: 2500364746

Description

Technical Specifications  Technical Specifications Enclosure/switchgear cabinet Material Stainless steel Colour Stainless steel Degree of protection (IP rating) IP66 Impact resistance (IK rating) IK08 With backside door No With ventilation door No Tackable Yes Depth 210 mm Height 300 mm Width 300 mm Number of locks 2 Number of doors 1 Pitched roof No With glazed door No Pole fastening Yes Wall fastening possible Yes Suitable for metrical mounting No Suitable for outdoor set-up No Mounting plate depth-adjustable No Floor installation possible No Suitable for wall built-in No EMC-version No With mounting plate Yes · Technical Data Sheet – Click to Download
