Cabinet Wall Mounting 800 x 1000 x 300mm Stainless Steel
Cabinet Wall Mounting 800 x 1000 x 300mm Stainless Steel

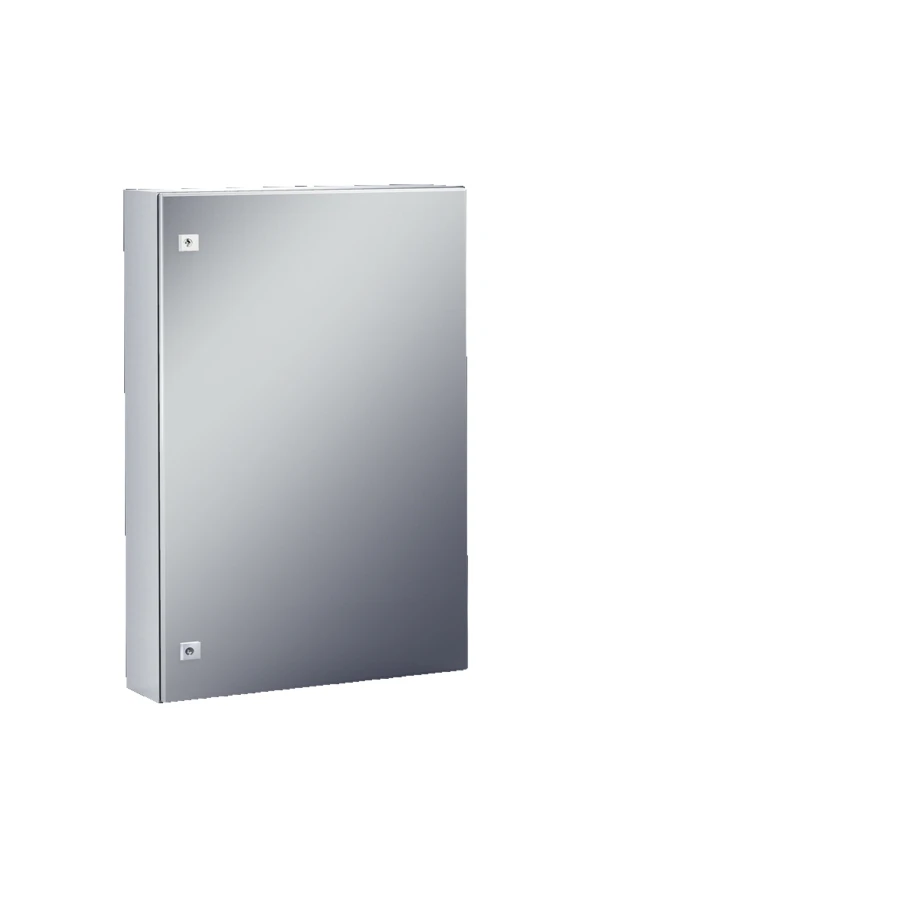

Cabinet Wall Mounting 800 x 1000 x 300mm Stainless Steel - Image 2

Cabinet Wall Mounting 800 x 1000 x 300mm Stainless Steel

£1,165.40 Incl. VAT

AE Compact enclosure, WHD: 800x1000x300 mm, Stainless steel 1.4301, with mounting plate, single-door, with two cam locks · · · 955 x 739mm mounting plate · · NEMA 4X protection · · 3mm double-bit lock insert · · IP66 rated · · IK08 protection · · It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. · · Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1016600 Categories: , , Brand: Part Number: 2500019799

Description

Technical Specifications  Technical Specifications Enclosure/switchgear cabinet Material Stainless steel Impact resistance (IK rating) IK08 Degree of protection (IP rating) IP66 Height 1000 mm Colour Stainless steel RAL number 0 Depth 300 mm Floor installation possible No Wall fastening possible Yes Suitable for wall built-in No With mounting plate Yes Mounting plate depth-adjustable No Number of locks 2 Width 800 mm Number of doors 1 EMC-version No Tackable No Suitable for outdoor set-up No With ventilation door No With backside door No Pitched roof No With glazed door No Pole fastening Yes Suitable for metrical mounting Yes · Technical Data Sheet – Click to Download
