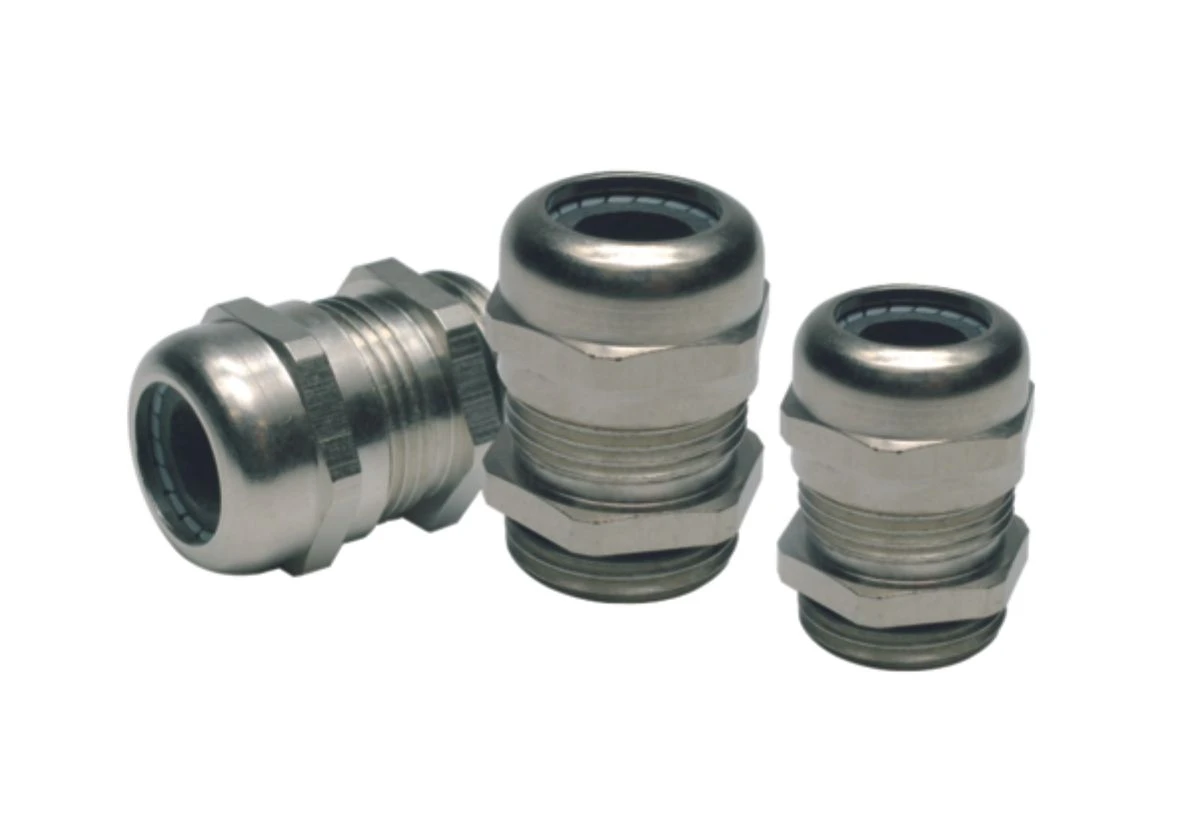

Cembre M12X1.5 Nickel Plated Brass EMC Cable Gland

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Surface protection Nickel-plated Degree of protection (IP rating) IP68 Model Straight Thread type Metric Material Metal Type of sealing Sealing ring Material qualifier Brass Hexagon angular dimension – mm Nominal thread size metric/PG 12 Pitch thread 1.5 mm Spanner width 14 mm Thread length 5 mm RAL number – Working temperature -40 – 100 °C Suitable for cable outer diameter 3 – 6.5 mm Bend radius protection/trumpet flare No Explosion-tested version No Locknut included No EMC-version Yes With strain relief Yes Screened No Shock resistant No Halogen free No Glass fibre reinforced No Multi cable sealing No Separable (split) screw gland No Flat cable sealing No For armoured cable No Snapping in opening No · Technical Data Sheet – Click to Download
