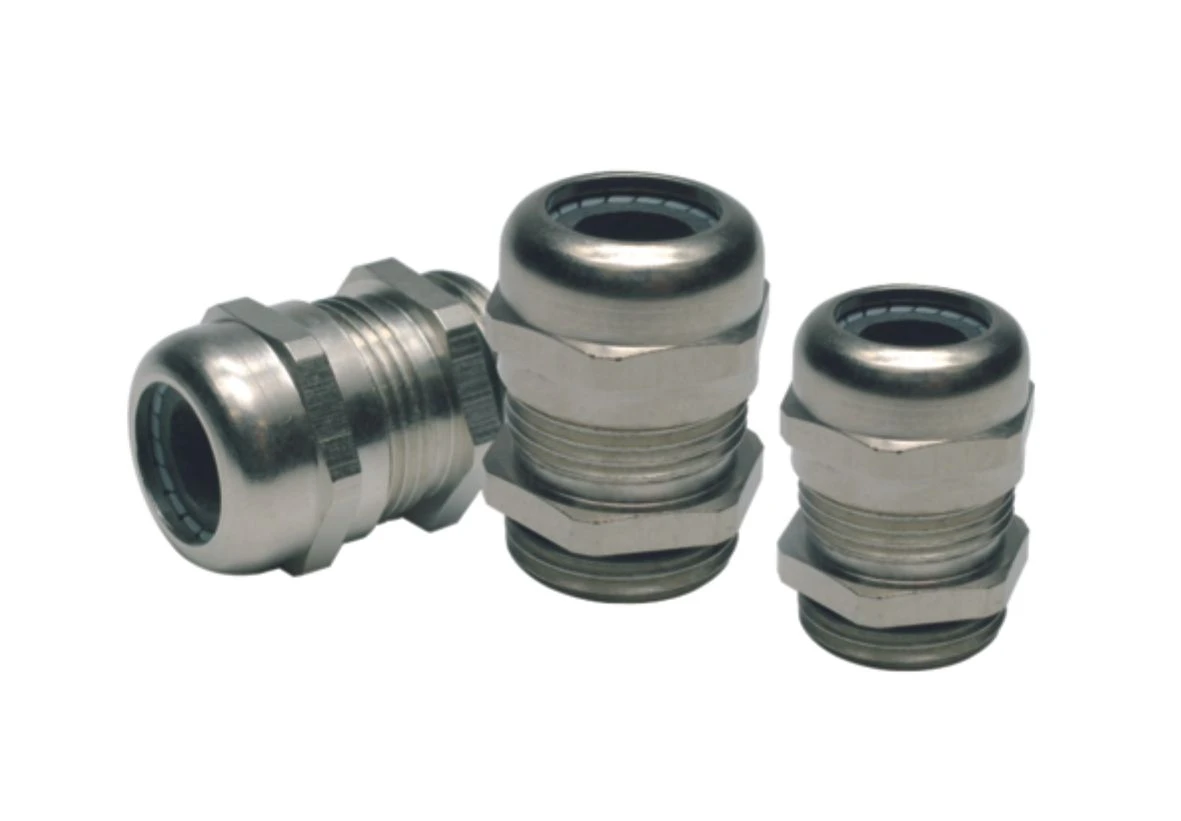

Cembre M16X1.5 Nickel Plated Brass EMC Cable Gland

Technical Specifications  Technical Specifications Cable gland Degree of protection (IP rating) IP68 Surface protection Nickel-plated Thread type Metric For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Model Straight Type of sealing Sealing ring Material qualifier Brass Material Metal RAL number – Spanner width 17 mm Pitch thread 1.5 mm Nominal thread size metric/PG 16 Thread length 5.5 mm Hexagon angular dimension – mm Working temperature -40 – 100 °C Suitable for cable outer diameter 5.5 – 10 mm Shock resistant No With strain relief Yes Explosion-tested version No Multi cable sealing No Separable (split) screw gland No Screened No Bend radius protection/trumpet flare No Glass fibre reinforced No For armoured cable No Snapping in opening No Flat cable sealing No Locknut included No EMC-version Yes Halogen free No · Technical Data Sheet – Click to Download
