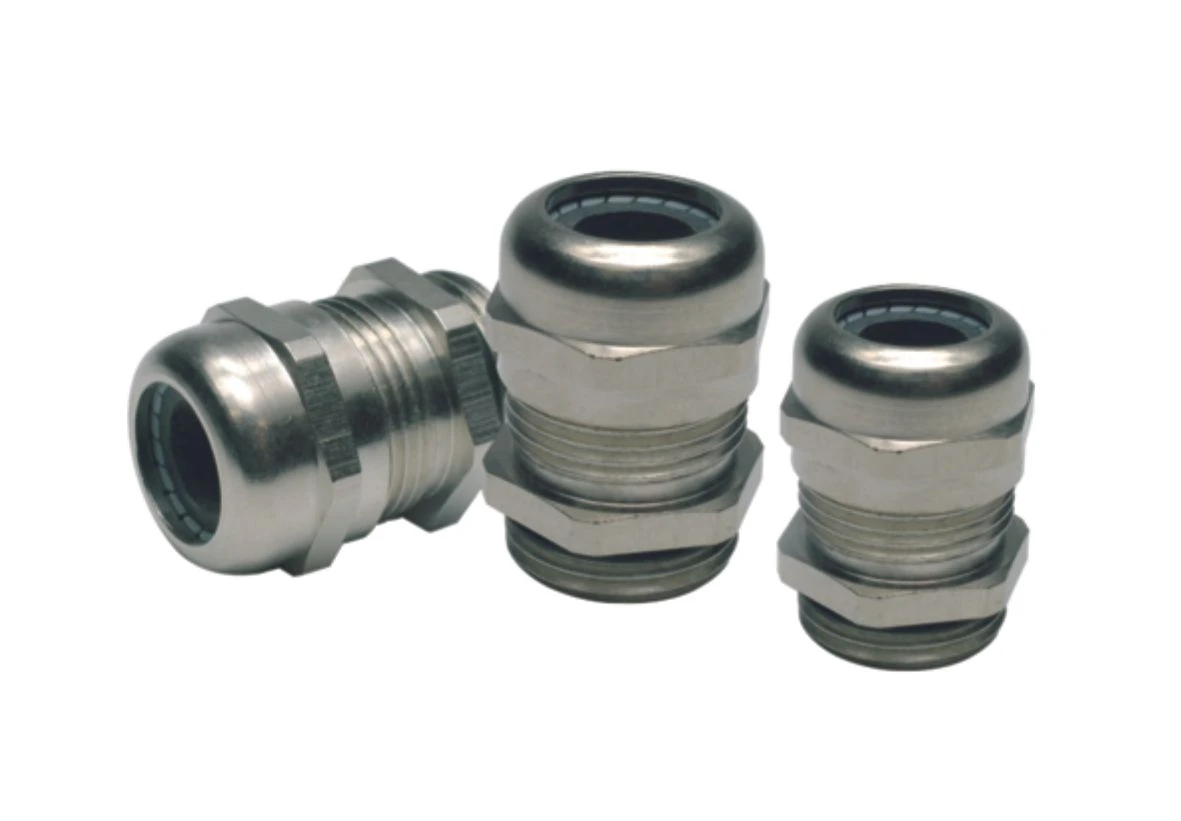

Cable Gland EMC M20
Cable Gland EMC M20
Cable Gland EMC M20 - Image 2
Cable Gland EMC M20 - Image 3

Cable Gland EMC M20

£9.88 Incl. VAT

M20x1.5 Nickel Plated Brass EMC Cable Gland · · · Nickel Plated Brass · · IP 68.5 Proctection Class · · CE Marked · · -30°C to +120°C Temperature Range · · Metric Thread M 1.5 · · M20X1.5

5 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20M3M2061N Categories: , , Brand: Part Number: 2500919200

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Type of sealing Sealing ring Degree of protection (IP rating) IP68 Surface protection Nickel-plated Thread type Metric Model Straight Material Metal Suitable for cable outer diameter 8 – 13 mm RAL number – Wrench width 22 mm Pitch thread 1.5 mm Nominal thread size metric/PG 20 Hexagon angular dimension – mm Material qualifier Brass Thread length 6 mm Bend radius protection/trumpet flare No Locknut included No Separable (split) screw gland No EMC-version Yes Flat cable sealing No Explosion-tested version No Glass fibre reinforced No Working temperature -40 – 100 °C Shock resistant No With strain relief Yes Screened No Multi cable sealing No For armoured cable No Snapping in opening No Halogen free No · Technical Data Sheet – Click to Download
