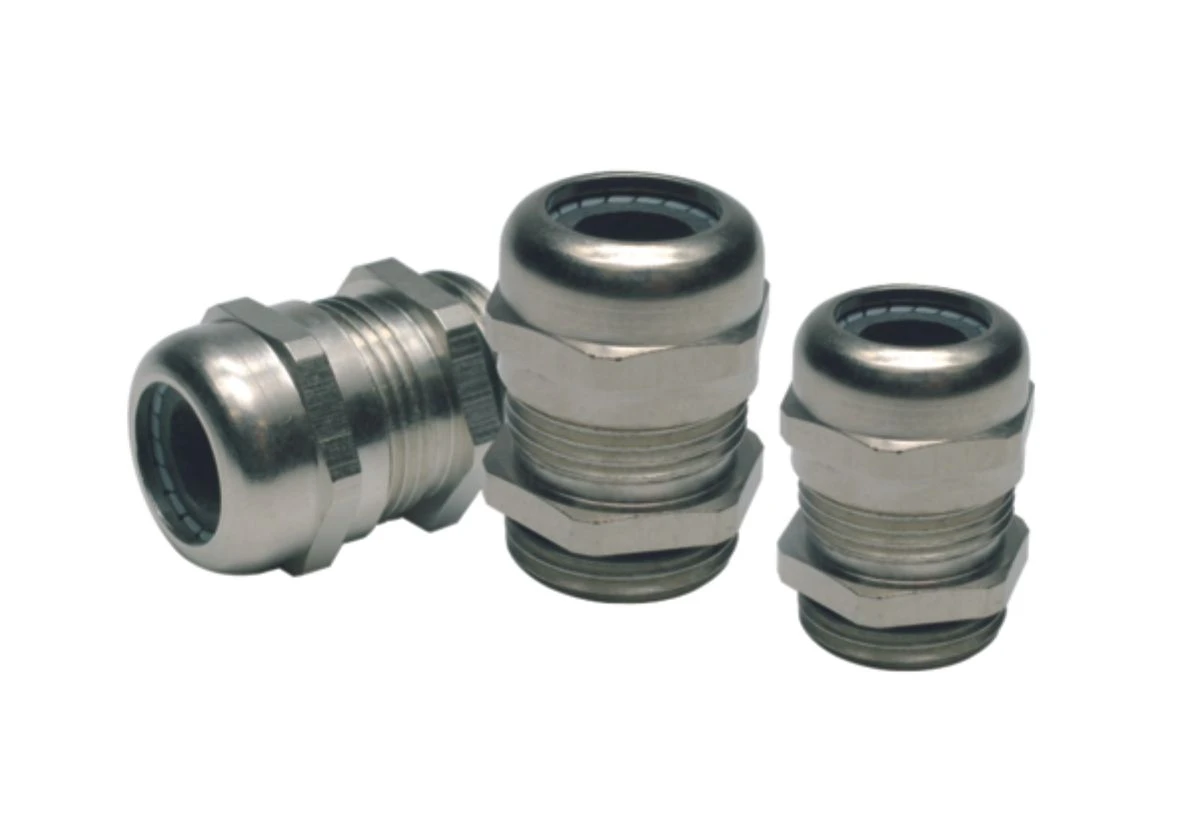

Cembre M25X1.5 Nickel Plated Brass EMC Cable Gland

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 Thread type Metric Surface protection Nickel-plated Type of sealing Sealing ring Model Straight Material Metal Material qualifier Brass Spanner width 30 mm Nominal thread size metric/PG 1.5 Thread length 7 mm Hexagon angular dimension – mm Pitch thread 1.5 mm RAL number – Working temperature -40 – 100 °C Suitable for cable outer diameter 11 – 18 mm Halogen free No Multi cable sealing No Separable (split) screw gland No For armoured cable No Snapping in opening No Glass fibre reinforced No EMC-version Yes Explosion-tested version No Screened No Flat cable sealing No Locknut included No Shock resistant No With strain relief Yes Bend radius protection/trumpet flare No · Technical Data Sheet – Click to Download
