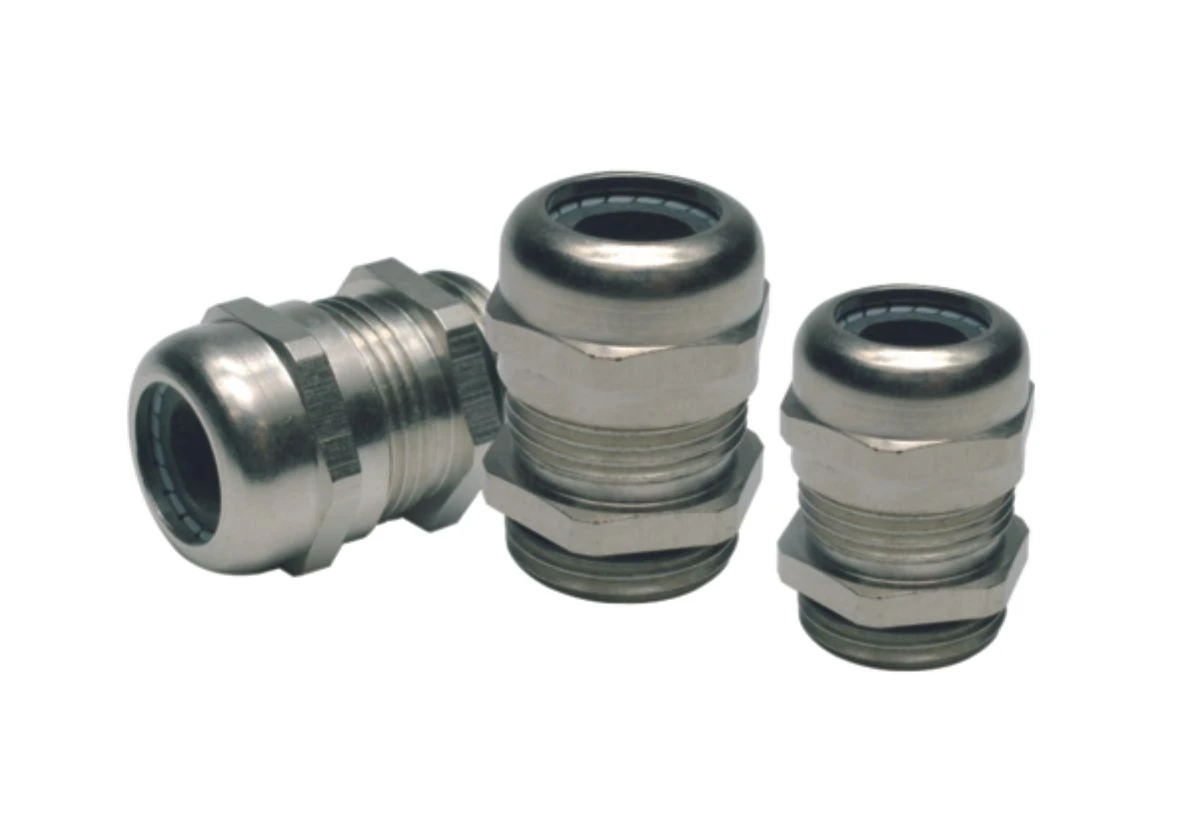

Cembre M32X1.5 Nickel Plated Brass EMC Cable Gland

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Degree of protection (IP rating) IP68 Surface protection Nickel-plated Thread type Metric Model Straight Type of sealing Sealing ring Material Metal Material qualifier Brass Pitch thread 1.5 mm Spanner width 34 mm Nominal thread size metric/PG 32 Thread length 8 mm RAL number – Hexagon angular dimension – mm Suitable for cable outer diameter 15 – 21 mm Working temperature -40 – 100 °C Shock resistant No With strain relief Yes Halogen free No For armoured cable No Snapping in opening No EMC-version Yes Glass fibre reinforced No Bend radius protection/trumpet flare No Flat cable sealing No Separable (split) screw gland No Explosion-tested version No Screened No Multi cable sealing No Locknut included No · Technical Data Sheet – Click to Download
