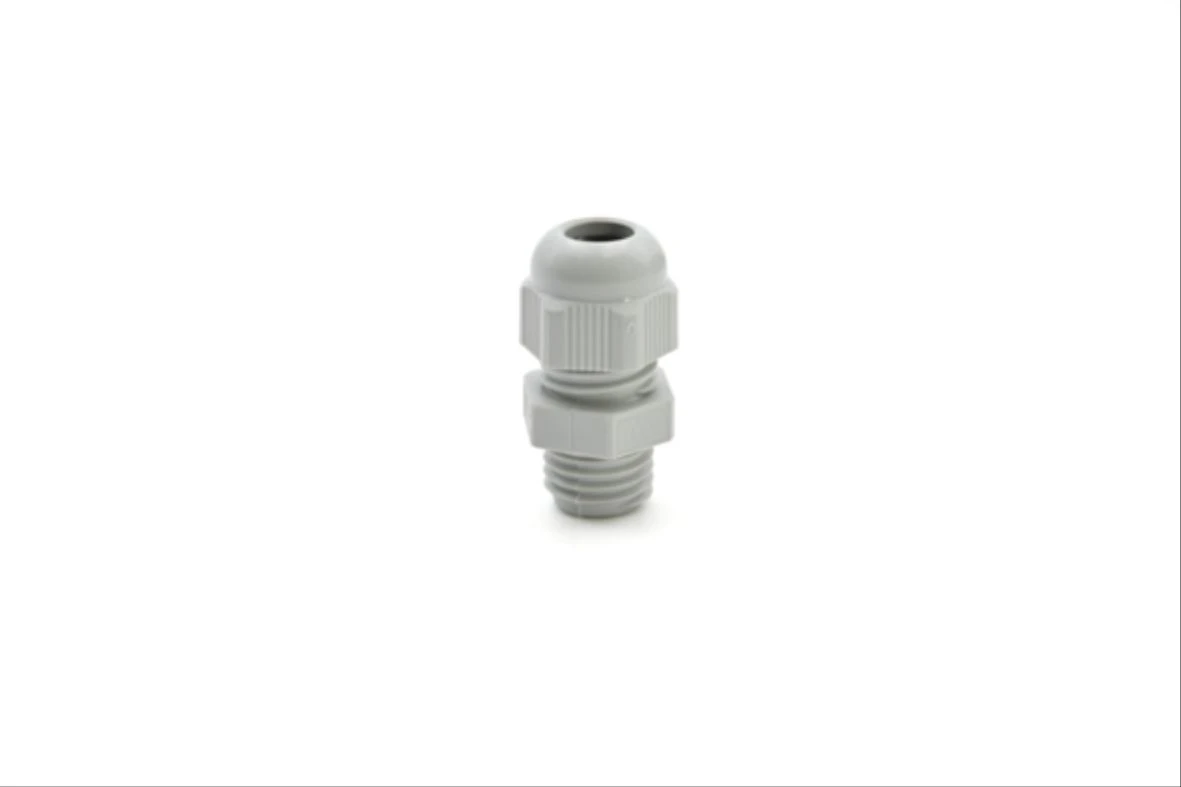

Cembre M12X1.5 Polyamide PA6.6 Cable Gland Light Grey

Technical Specifications  Technical Specifications Cable gland Colour Grey For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Degree of protection (IP rating) IP68 Material Plastic Model Straight Thread type Metric Material qualifier Polyamide (PA) Type of sealing Sealing ring Surface protection Untreated Pitch thread 1.5 mm Thread length 8 mm Nominal thread size metric/PG 12 Hexagon angular dimension 15 mm RAL number 7035 Spanner width 15 mm Suitable for cable outer diameter 3.5 – 7 mm Working temperature -40 – 100 °C Explosion-tested version No Separable (split) screw gland No Flat cable sealing No EMC-version No Locknut included No Snapping in opening No For armoured cable No Glass fibre reinforced No Multi cable sealing No Screened No With strain relief Yes Bend radius protection/trumpet flare No Shock resistant No Halogen free No · Technical Data Sheet – Click to Download
