Cable Gland M12

£0.71 Incl. VAT

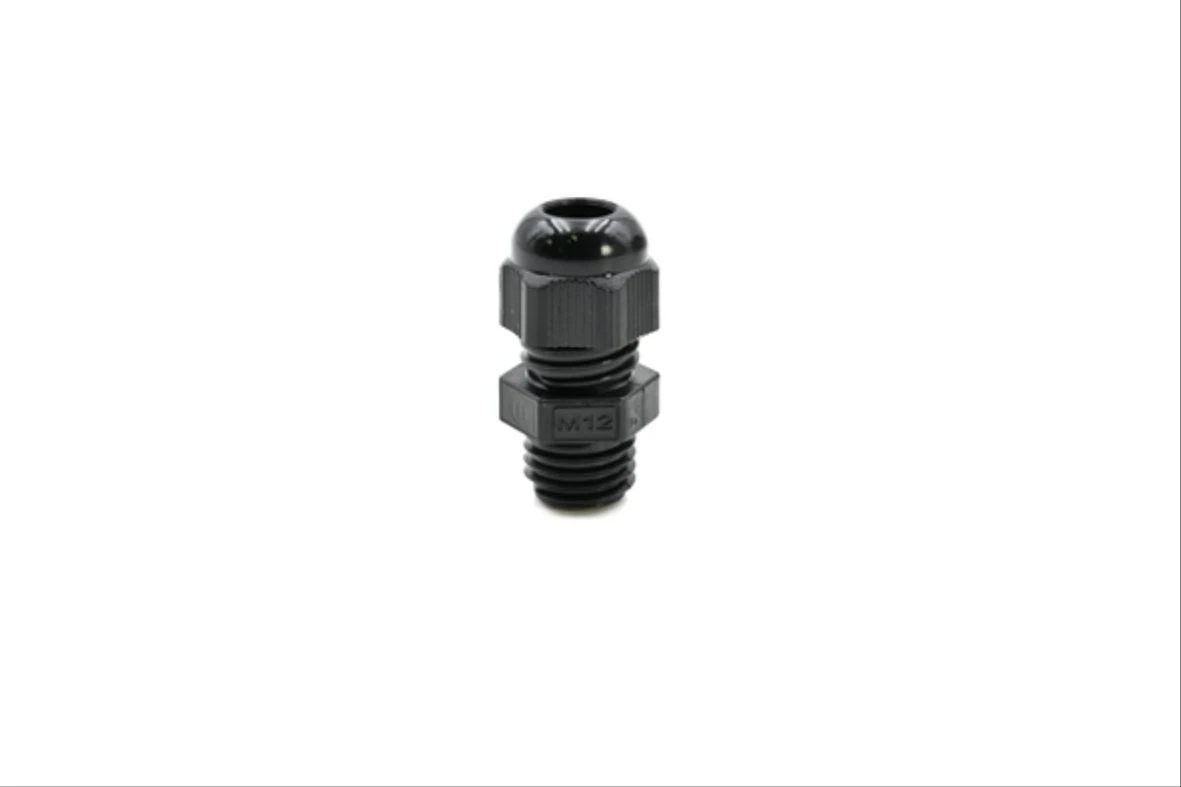

M12x1.5 Polyamide PA6.6 Cable Gland black · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 9005 Black · · CE Marking

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1900.M12N Categories: , , Brand: Part Number: 1061005416

Description

Technical Specifications  Technical Specifications Cable gland Type of sealing Sealing ring For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Material Plastic Degree of protection (IP rating) IP68 Colour Black Thread type Metric Model Straight Material qualifier Polyamide (PA) Surface protection Untreated RAL number 9005 Nominal thread size metric/PG 12 Working temperature -40 – 100 °C Shock resistant No Suitable for cable outer diameter 3.5 – 7 mm Thread length 8 mm Wrench width 15 mm Pitch thread 1.5 mm Hexagon angular dimension 15 mm Explosion-tested version No Flat cable sealing No Separable (split) screw gland No Multi cable sealing No Bend radius protection/trumpet flare No Locknut included No With strain relief Yes Screened No EMC-version No Glass fibre reinforced No Snapping in opening No For armoured cable No Halogen free No · Technical Data Sheet – Click to Download
