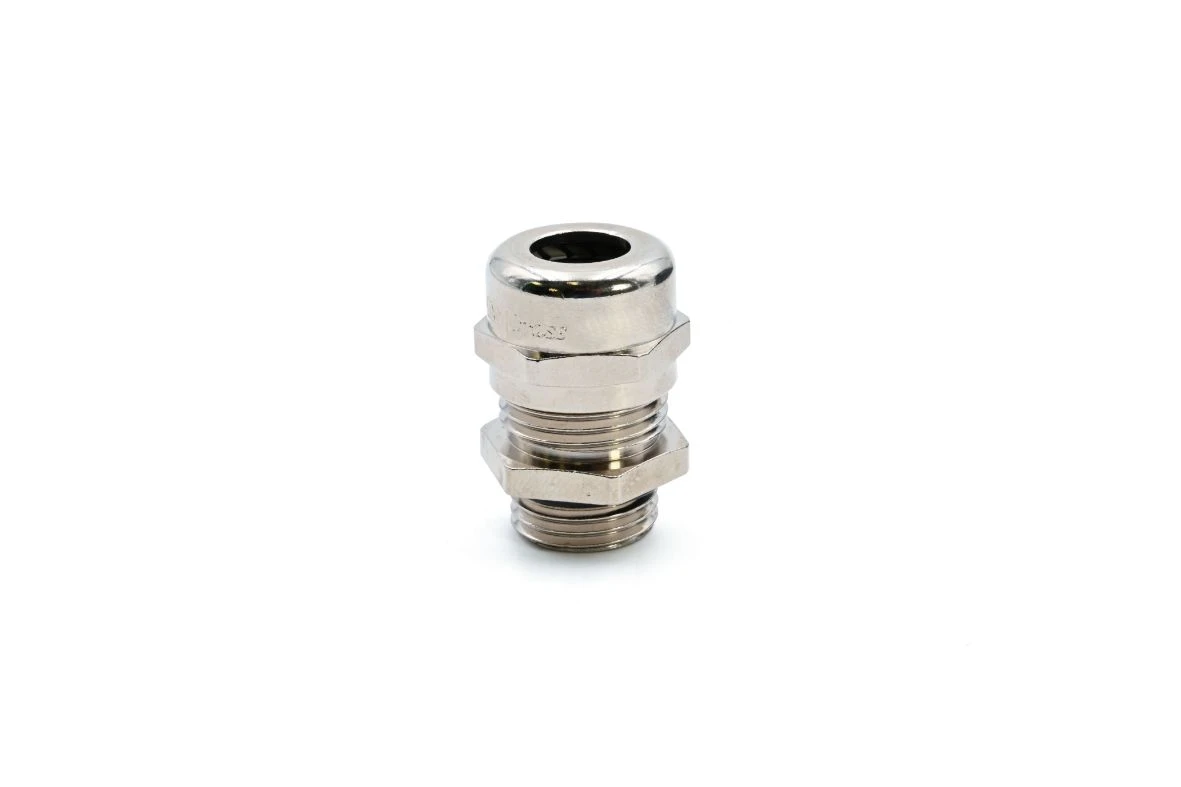

Cembre Cable Gland M12

Technical Specifications  Technical Specifications Cable gland Type of sealing Sealing ring For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 Surface protection Nickel-plated Thread type Metric Material qualifier Brass Nominal thread size metric/PG 12 RAL number – Wrench width 16 mm Thread length 6.5 mm Pitch thread 1.5 mm Material Metal Model Straight Suitable for cable outer diameter 3 – 7 mm Locknut included No EMC-version No Bend radius protection/trumpet flare No For armoured cable No Snapping in opening No Working temperature -40 – 100 °C Hexagon angular dimension 18 mm Glass fibre reinforced No Separable (split) screw gland No Multi cable sealing No Flat cable sealing No Shock resistant No Explosion-tested version No Screened No With strain relief Yes Halogen free No · Technical Data Sheet – Click to Download
