Cembre Cable Gland M16

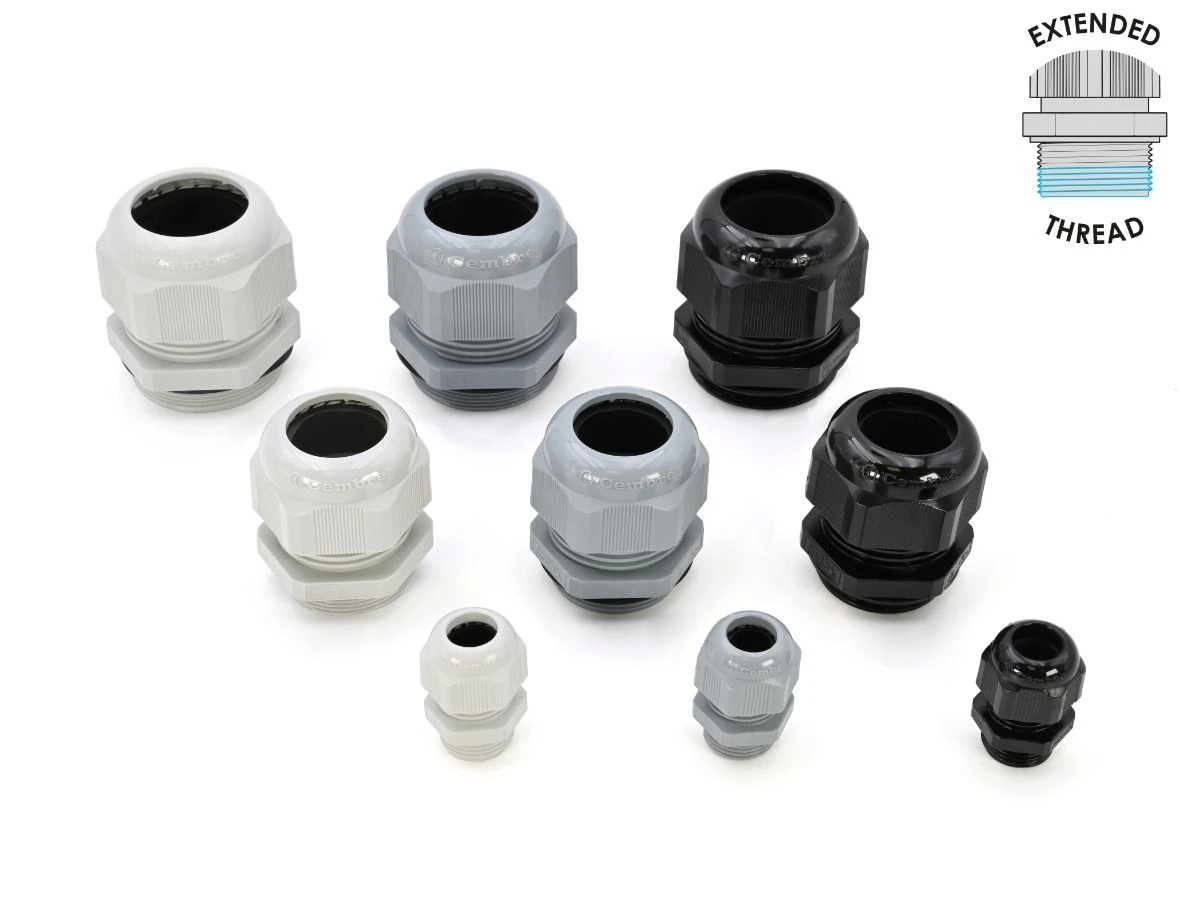

M16x1.5 Polyamide PA6.6 Extended Thread Cable Gland black · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 9005 Black · · CE Marking · · Colour: Black
Description
Technical Specifications Technical Specifications Cable gland Type of sealing Sealing ring For ATEX classification, Ex-zone dust None Material Plastic For ATEX classification, Ex-zone gas None Degree of protection (IP rating) IP68 Colour Black Thread type Metric Model Straight Suitable for cable outer diameter 5 – 10 mm Wrench width 19 mm RAL number 9005 Hexagon angular dimension 19 mm Thread length 15 mm Nominal thread size metric/PG 16 Material qualifier Polyamide (PA) Pitch thread 1.5 mm Screened No EMC-version No Separable (split) screw gland No Explosion-tested version No Locknut included No Flat cable sealing No Glass fibre reinforced No Working temperature -40 – 100 °C Multi cable sealing No Snapping in opening No For armoured cable No Shock resistant Yes With strain relief Yes Bend radius protection/trumpet flare No Halogen free No · Technical Data Sheet – Click to Download
