Description

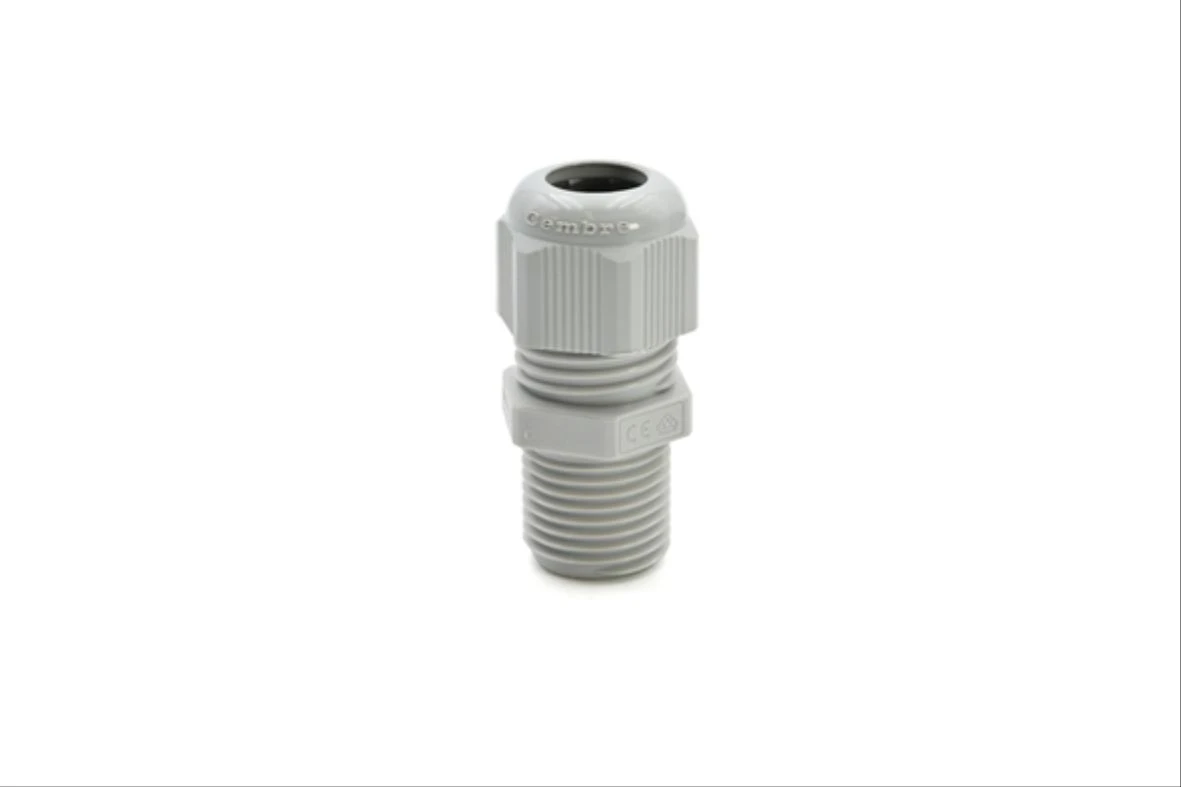

Technical Specifications  Technical Specifications Cable gland Material Plastic For ATEX classification, Ex-zone gas None Colour Grey For ATEX classification, Ex-zone dust None Type of sealing Sealing ring Material qualifier Polyamide (PA) Nominal thread size metric/PG 16 Hexagon angular dimension 19 mm Pitch thread 1.5 mm RAL number 7035 Model Straight Thread type Metric Degree of protection (IP rating) IP68 Working temperature -40 – 100 °C Shock resistant Yes Bend radius protection/trumpet flare No Screened No With strain relief Yes Suitable for cable outer diameter 5 – 10 mm Wrench width 19 mm Thread length 15 mm Separable (split) screw gland No Flat cable sealing No Multi cable sealing No EMC-version No Snapping in opening No For armoured cable No Glass fibre reinforced No Explosion-tested version No Locknut included No Halogen free No · Technical Data Sheet – Click to Download
