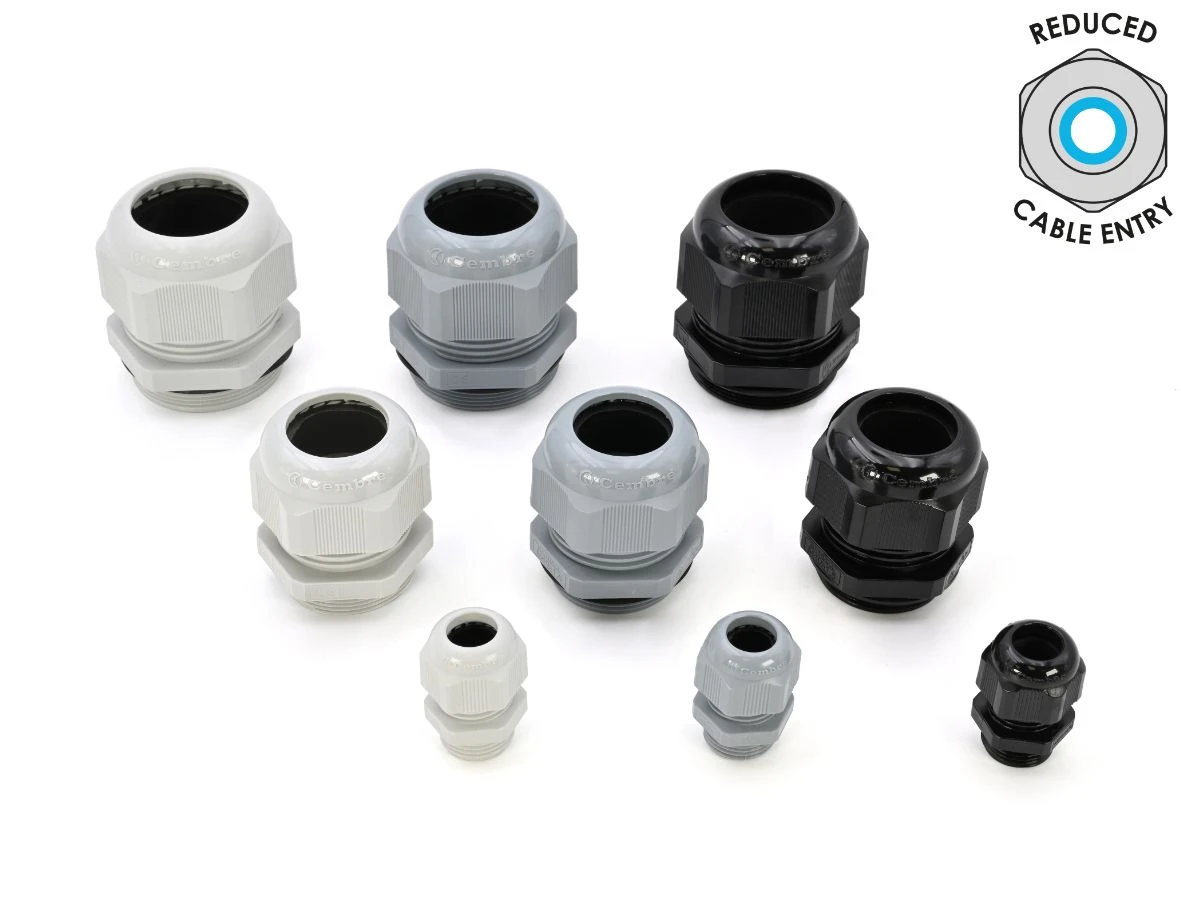

Cembre M16X1.5 Polyamide PA6.6 Reduced Cable Entry Cable Gland Black

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 Material Plastic Model Straight Thread type Metric Colour Black Type of sealing Sealing ring Material qualifier Polyamide (PA) Surface protection Untreated Hexagon angular dimension 19 mm Pitch thread 1.5 mm Spanner width 19 mm Nominal thread size metric/PG 16 Thread length 8 mm RAL number 9005 Working temperature -40 – 100 °C Suitable for cable outer diameter 3 – 7 mm Halogen free No Multi cable sealing No Flat cable sealing No EMC-version No Separable (split) screw gland No Snapping in opening No For armoured cable No Explosion-tested version No Glass fibre reinforced No Bend radius protection/trumpet flare No Locknut included No Screened No Shock resistant No With strain relief Yes · Technical Data Sheet – Click to Download
