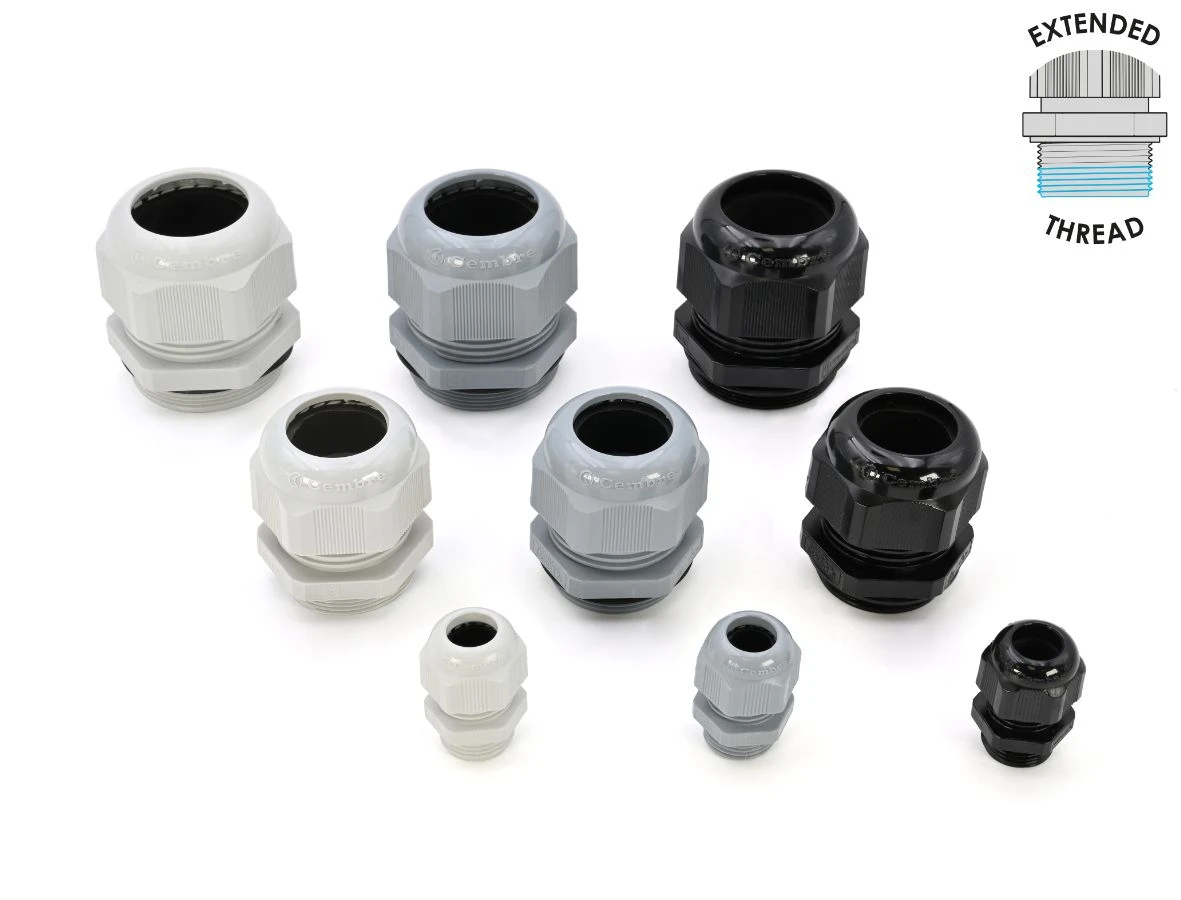

Cembre M20X1.5 Polyamide PA6.6 Extended Thread Cable Gland Black

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Material Plastic Degree of protection (IP rating) IP68 Model Straight Thread type Metric Type of sealing Sealing ring Colour Black Material qualifier Polyamide (PA) RAL number 9005 Spanner width 25 mm Pitch thread 1.5 mm Hexagon angular dimension 25 mm Nominal thread size metric/PG 20 Thread length 15 mm Suitable for cable outer diameter 7 – 13 mm Working temperature -40 – 100 °C Shock resistant Yes Explosion-tested version No Glass fibre reinforced No Bend radius protection/trumpet flare No Flat cable sealing No Multi cable sealing No Screened No With strain relief Yes Separable (split) screw gland No For armoured cable No Snapping in opening No EMC-version No Locknut included No Halogen free No · Technical Data Sheet – Click to Download
