Description

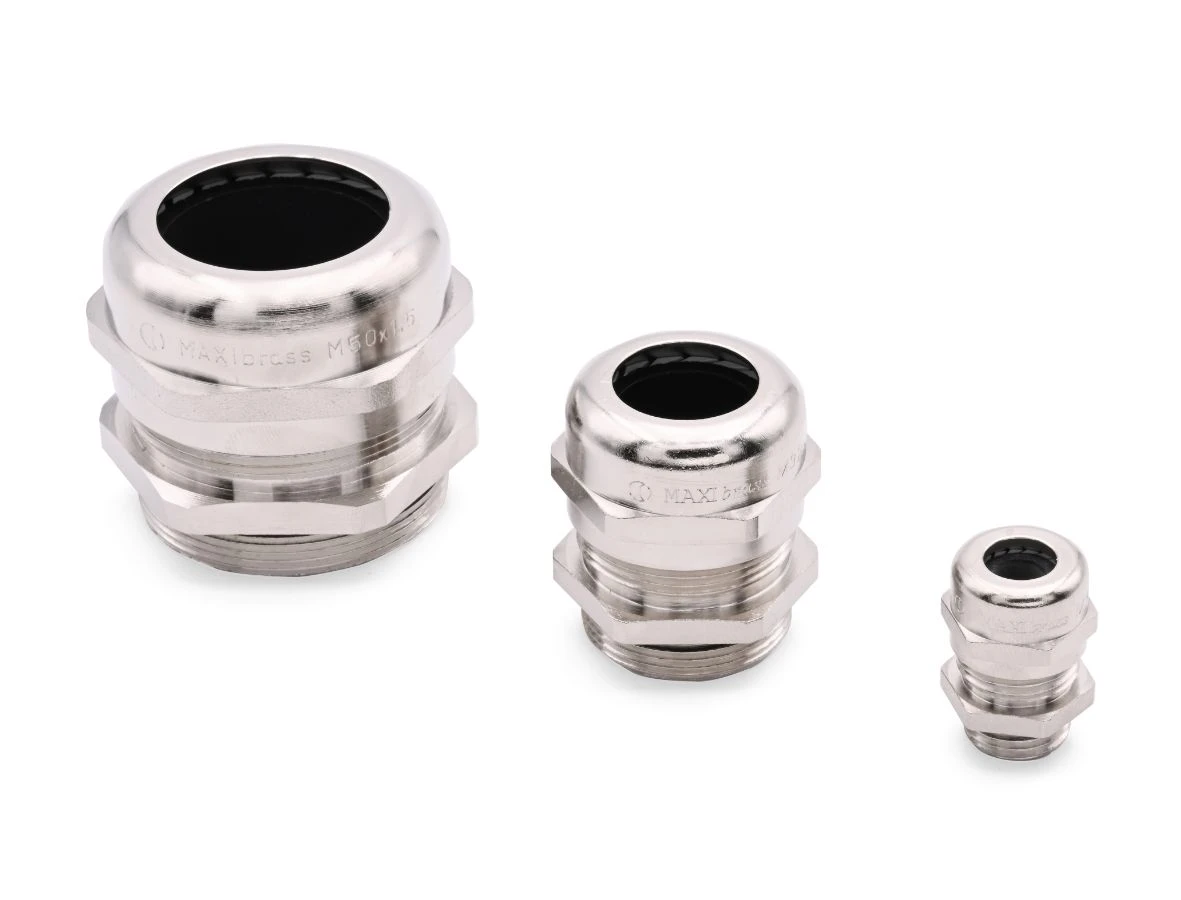

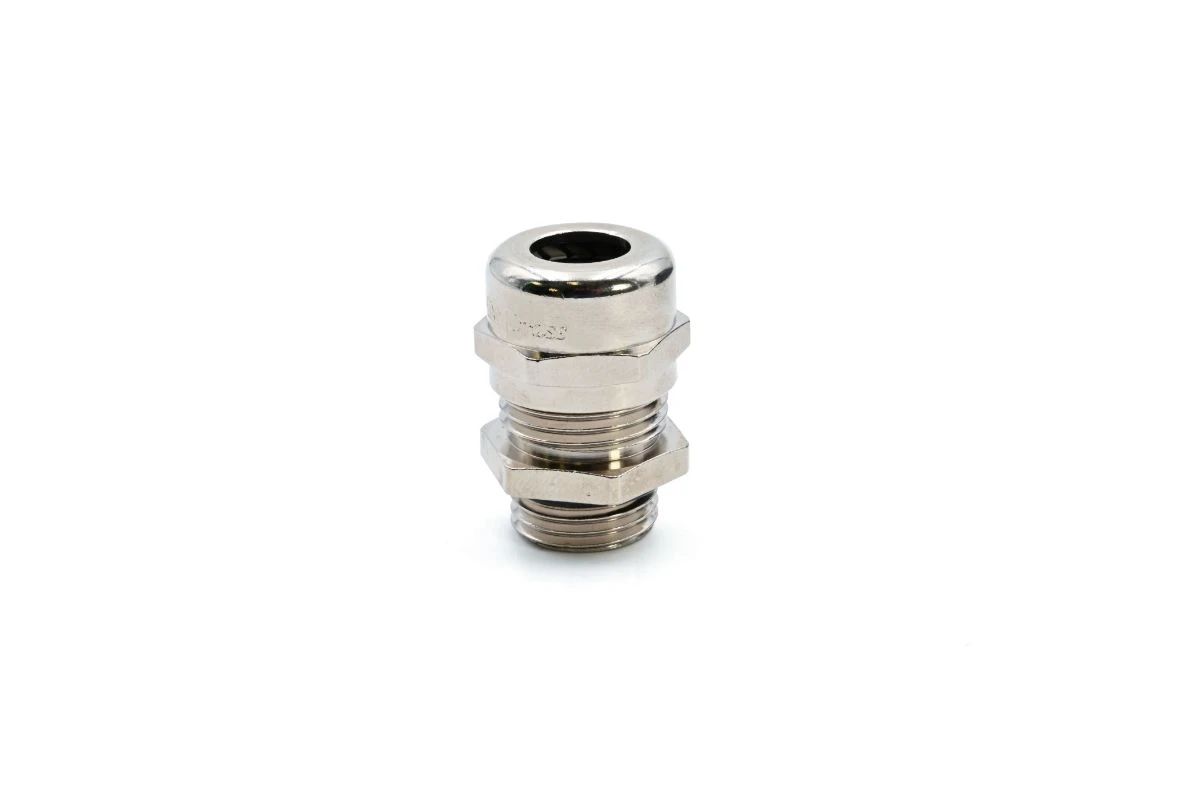

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 Type of sealing Sealing ring Thread type Metric Surface protection Nickel-plated Material Metal Model Straight RAL number – Material qualifier Brass Pitch thread 1.5 mm Thread length 8 mm Working temperature -40 – 100 °C Explosion-tested version No With strain relief Yes Shock resistant No Suitable for cable outer diameter 7 – 13 mm Wrench width 27 mm Nominal thread size metric/PG 20 Hexagon angular dimension 24 mm Glass fibre reinforced No Screened No Bend radius protection/trumpet flare No EMC-version No Separable (split) screw gland No Flat cable sealing No Multi cable sealing No Locknut included No Snapping in opening No For armoured cable No Halogen free No · Technical Data Sheet – Click to Download
