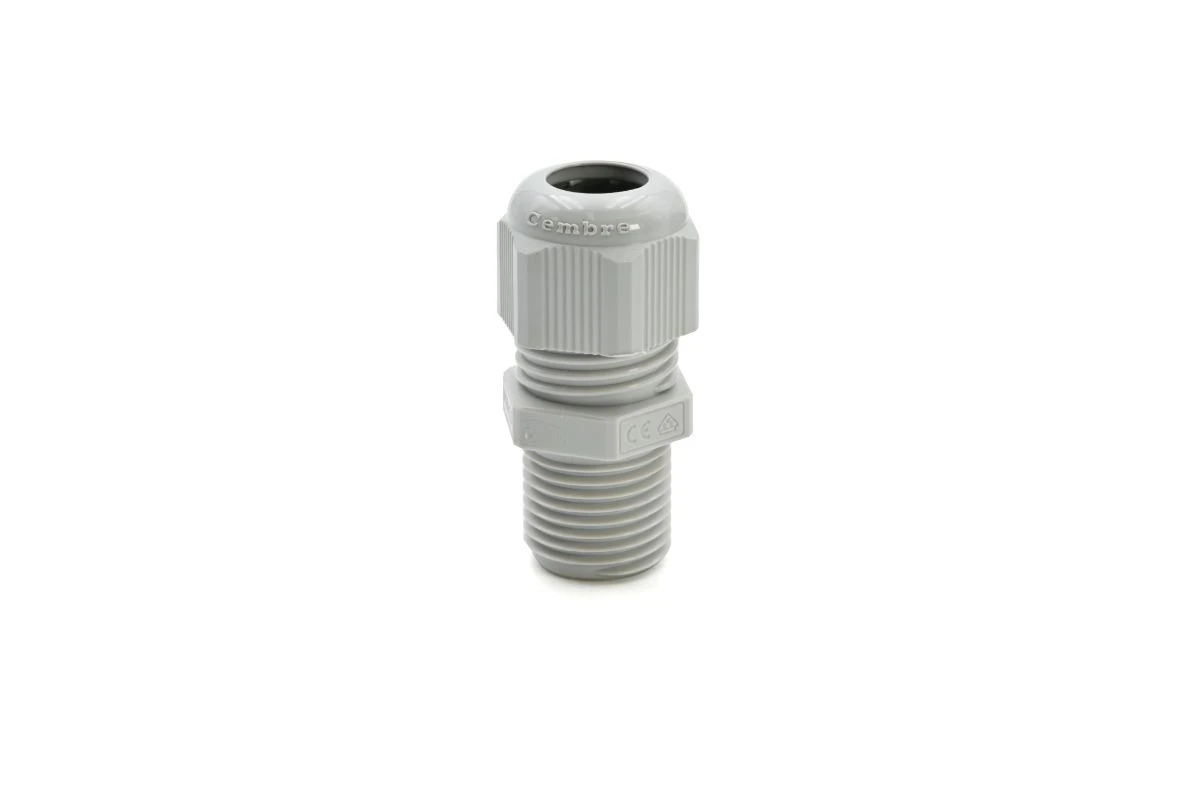

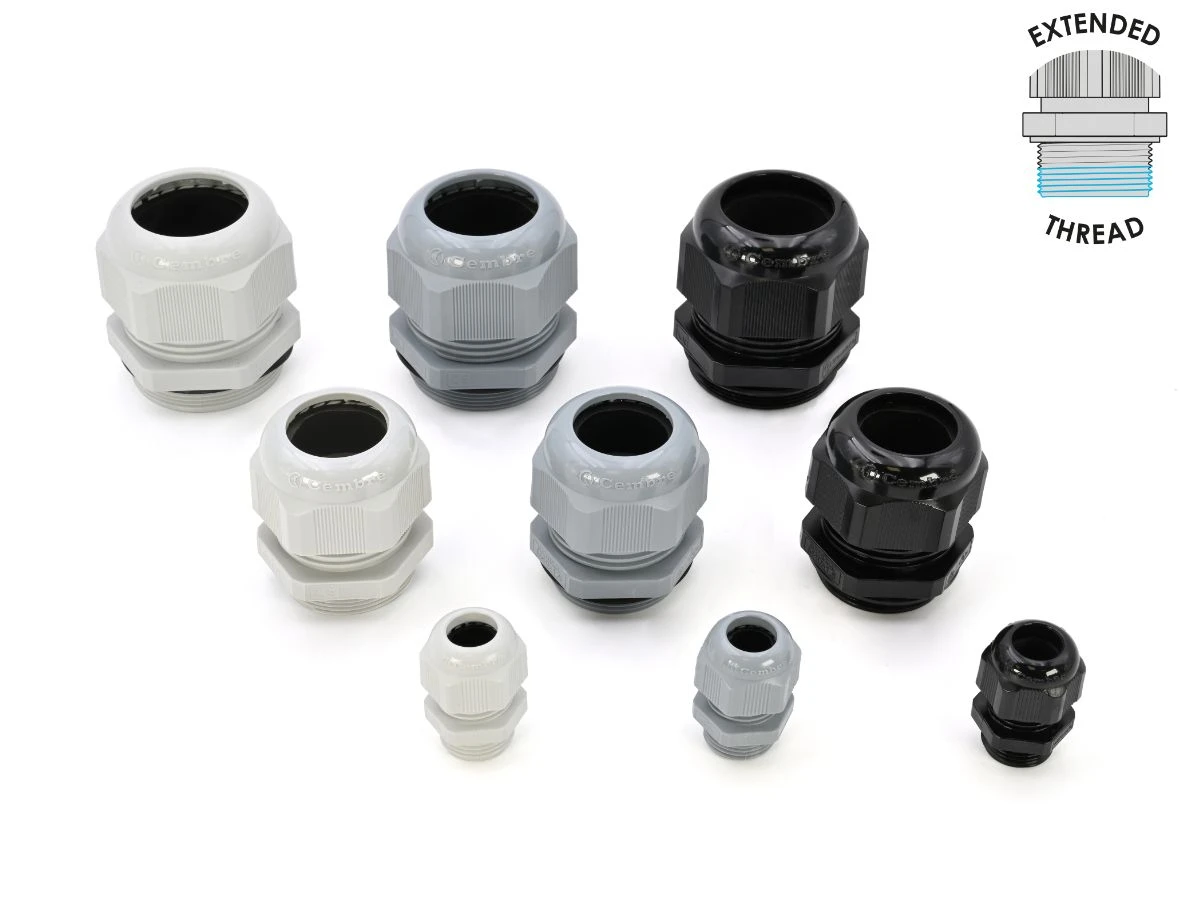

Cembre M20X1.5 Polyamide PA6.6 Extended Thread Cable Gland Light Grey
Cembre M20X1.5 Polyamide PA6.6 Extended Thread Cable Gland Light Grey
Cembre M20X1.5 Polyamide PA6.6 Extended Thread Cable Gland Light Grey - Image 2
Cembre M20X1.5 Polyamide PA6.6 Extended Thread Cable Gland Light Grey - Image 3
Cembre M20X1.5 Polyamide PA6.6 Extended Thread Cable Gland Light Grey - Image 4

Cembre M20X1.5 Polyamide PA6.6 Extended Thread Cable Gland Light Grey

£1.40 Incl. VAT

M20x1.5 Polyamide PA6.6 Extended Thread Cable Gland light grey · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 7035 Light Grey · · CE Marking

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1901.M20 Categories: , , Brand: Product Code: 2500919470

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None Colour Grey For ATEX classification, Ex-zone dust None Material Plastic Thread type Metric Degree of protection (IP rating) IP68 Type of sealing Sealing ring Model Straight Material qualifier Polyamide (PA) Surface protection Untreated Pitch thread 1.5 mm Spanner width 25 mm Nominal thread size metric/PG 20 Thread length 15 mm Hexagon angular dimension 25 mm RAL number 7035 Suitable for cable outer diameter 7 – 13 mm Working temperature -40 – 100 °C Halogen free No Separable (split) screw gland No Multi cable sealing No Explosion-tested version No Glass fibre reinforced No EMC-version No Shock resistant Yes With strain relief Yes Screened No Bend radius protection/trumpet flare No Locknut included No Flat cable sealing No Snapping in opening No For armoured cable No · Technical Data Sheet – Click to Download
