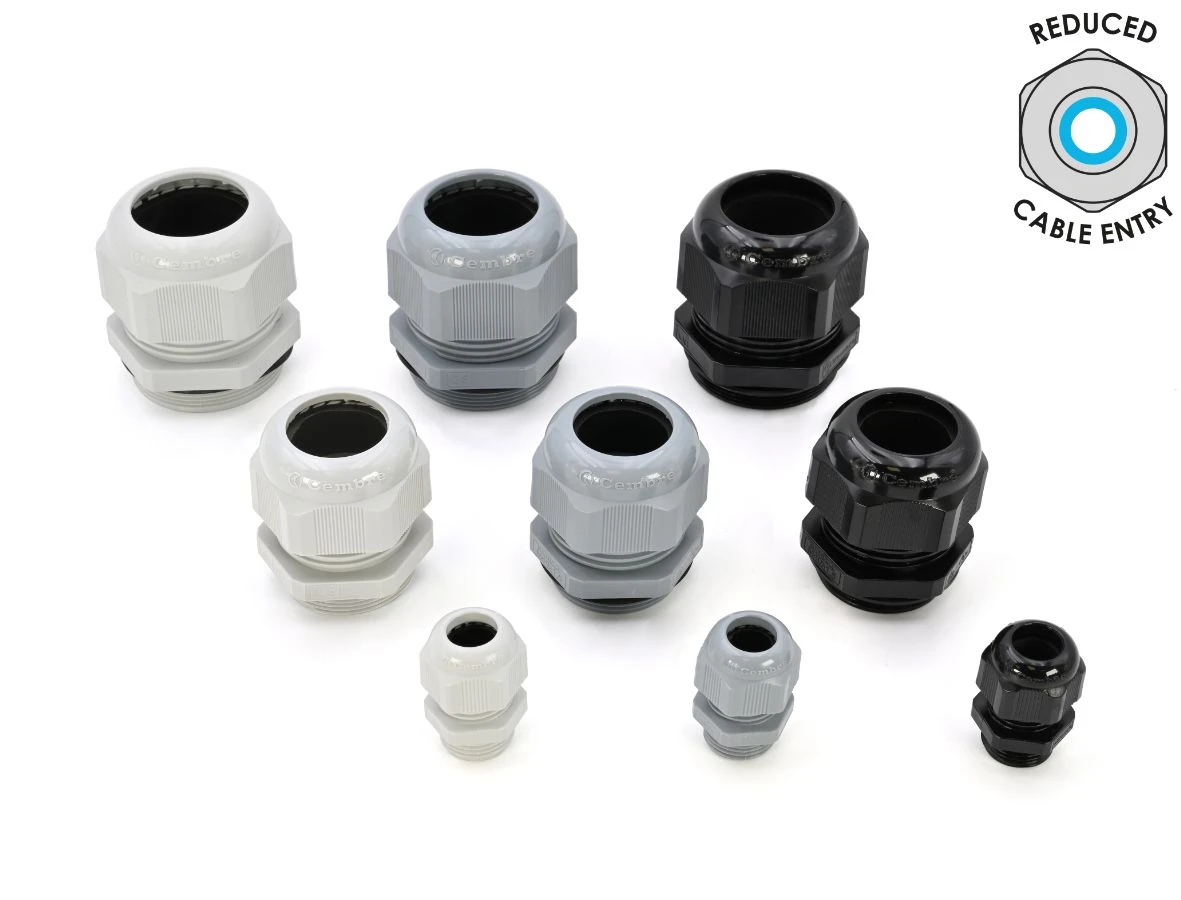

Cembre Cable Gland M20

Technical Specifications  Technical Specifications Cable gland Type of sealing Sealing ring Material Plastic For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Colour Grey Degree of protection (IP rating) IP68 Thread type Metric Material qualifier Polyamide (PA) Surface protection Untreated Model Straight RAL number 7035 Suitable for cable outer diameter 5 – 10 mm Flat cable sealing No Working temperature -40 – 100 °C Thread length 9 mm Nominal thread size metric/PG 20 Pitch thread 1.5 mm Wrench width 25 mm Hexagon angular dimension 25 mm EMC-version No With strain relief Yes Shock resistant No Glass fibre reinforced No For armoured cable No Snapping in opening No Multi cable sealing No Separable (split) screw gland No Explosion-tested version No Screened No Locknut included No Bend radius protection/trumpet flare No Halogen free No · Technical Data Sheet – Click to Download
