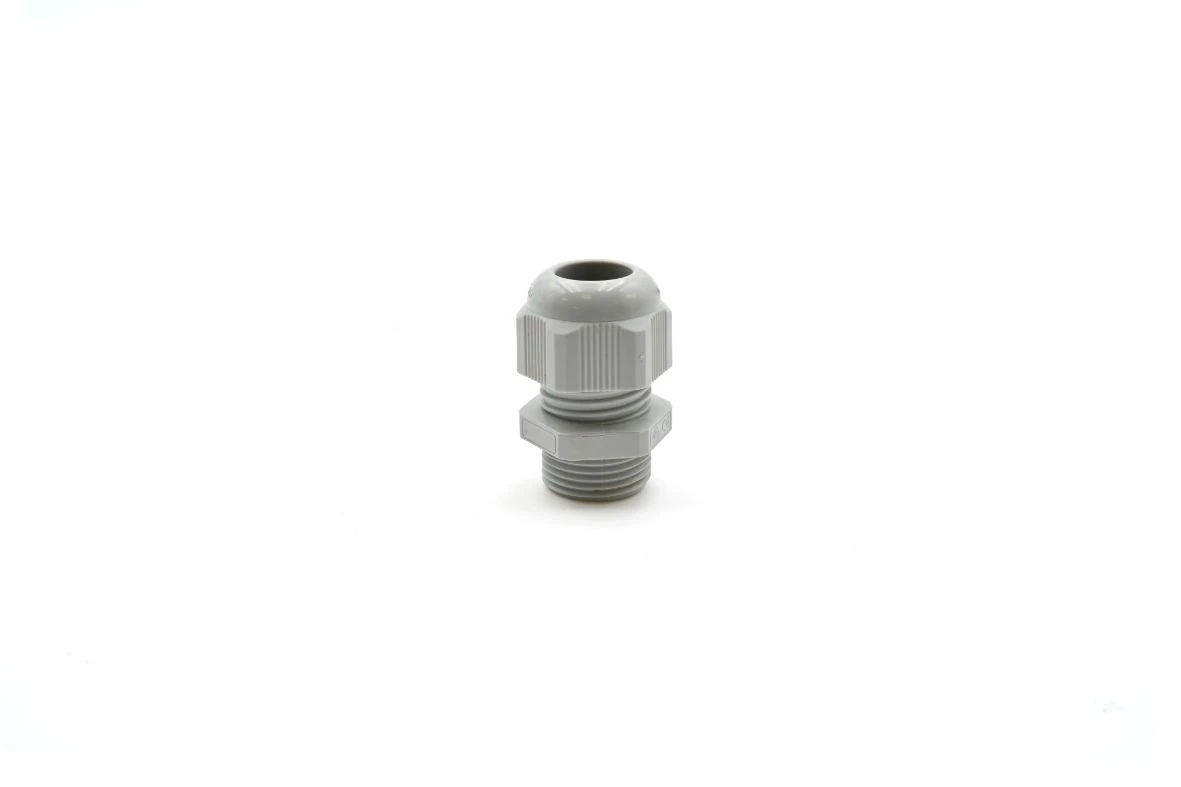

Cembre M20X1.5 Polyamide PA6.6 Cable Gland Light Grey

Technical Specifications  Technical Specifications Cable gland Colour Grey For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Material Plastic Degree of protection (IP rating) IP68 Thread type Metric Model Straight Type of sealing Sealing ring Material qualifier Polyamide (PA) Surface protection Untreated Pitch thread 1.5 mm Nominal thread size metric/PG 20 Spanner width 25 mm Thread length 9 mm RAL number 7035 Hexagon angular dimension 25 mm Suitable for cable outer diameter 7 – 13 mm Working temperature -40 – 100 °C Shock resistant No Bend radius protection/trumpet flare No Glass fibre reinforced No Separable (split) screw gland No Explosion-tested version No Locknut included No Flat cable sealing No Screened No With strain relief Yes Halogen free No Multi cable sealing No Snapping in opening No For armoured cable No EMC-version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
