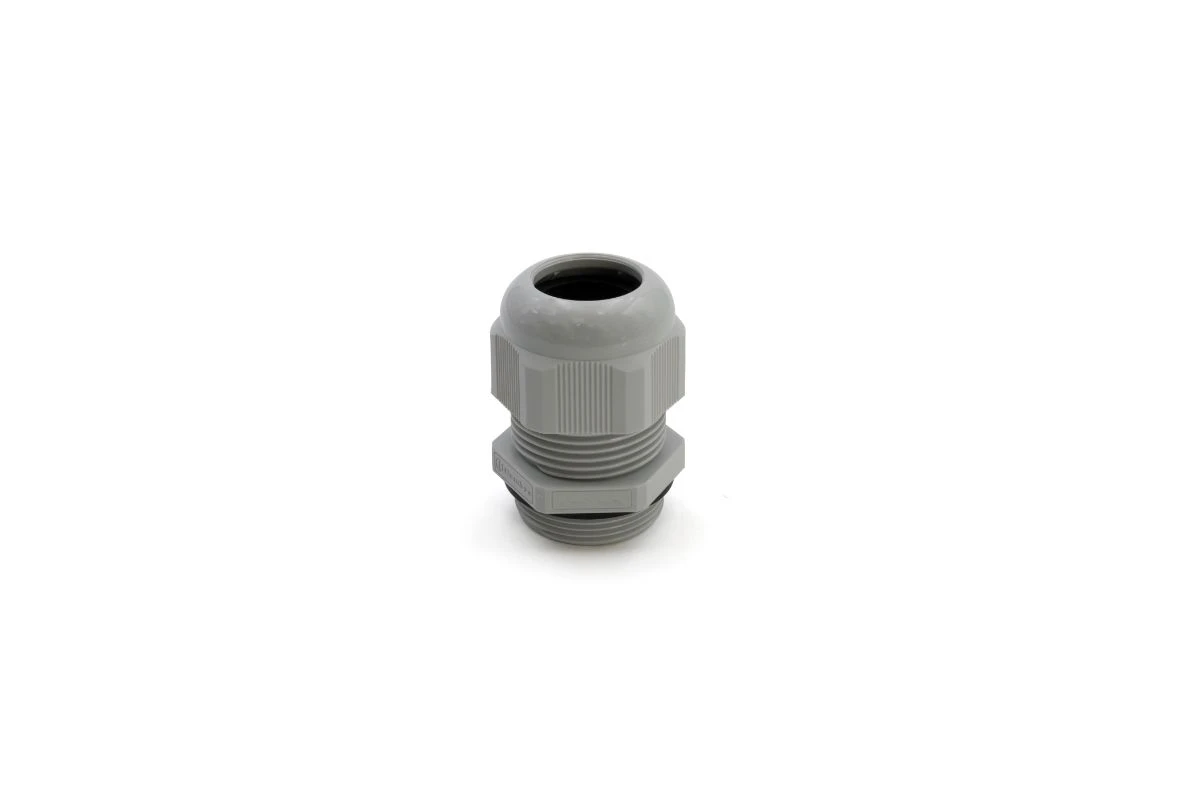

Cembre Cable Gland M25
M25x1.5 Polyamide PA6.6 Cable Gland light grey · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 7035 Light Grey · · CE Marking · · Gland Material: Polyamide · · Gland Colour: Grey · · Gland Size: M25 mm
Description
Technical Specifications Technical Specifications Cable gland Material Plastic Colour Grey Type of sealing Sealing ring For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 For ATEX classification, Ex-zone gas None Thread type Metric Material qualifier Polyamide (PA) Model Straight Surface protection Untreated RAL number 7035 Working temperature -40 – 100 °C Halogen free No Suitable for cable outer diameter 10 – 17 mm Thread length 10 mm Hexagon angular dimension 30 mm Nominal thread size metric/PG 25 Pitch thread 1.5 mm Wrench width 30 mm Multi cable sealing No Separable (split) screw gland No Flat cable sealing No EMC-version No Bend radius protection/trumpet flare No Explosion-tested version No For armoured cable No Snapping in opening No Locknut included No Glass fibre reinforced No Screened No With strain relief Yes Shock resistant No
