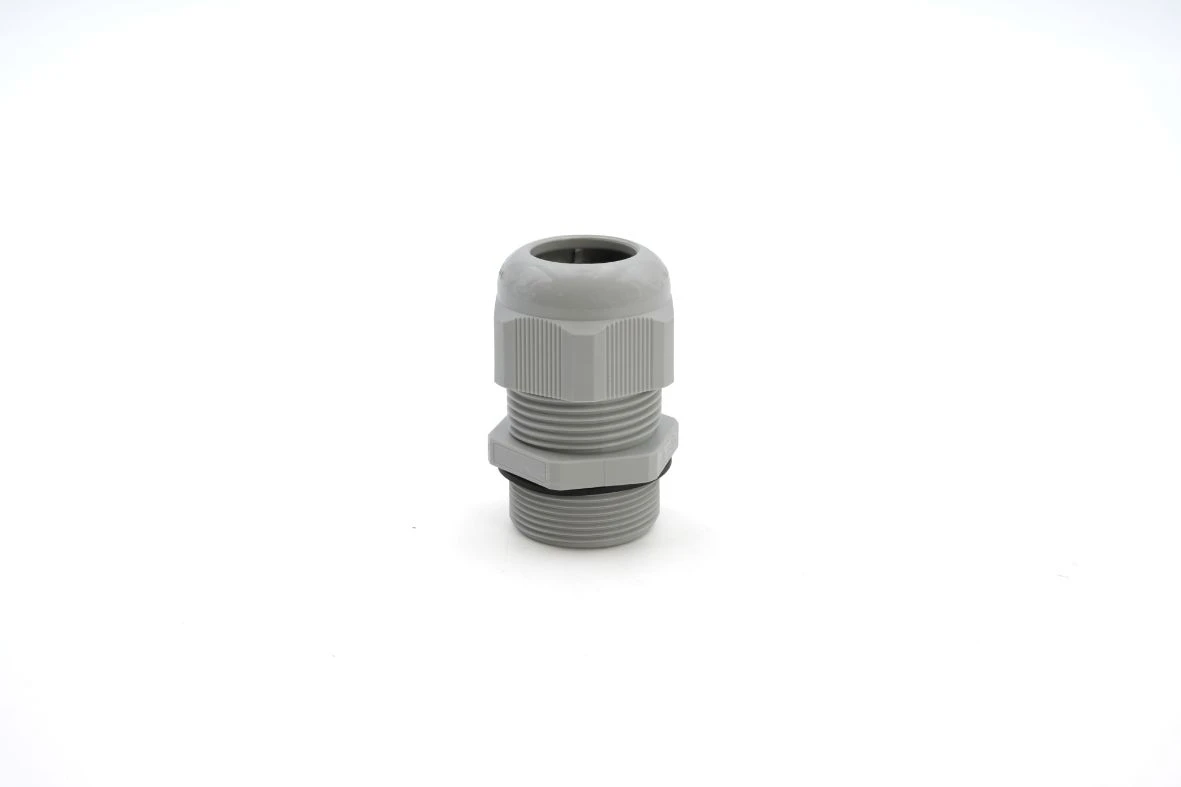

Cembre Cable Gland M25

Technical Specifications  Technical Specifications Cable gland Material Plastic Type of sealing Sealing ring Colour Grey For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 Thread type Metric Model Straight Material qualifier Polyamide (PA) RAL number 7035 Nominal thread size metric/PG 25 Pitch thread 1.5 mm Thread length 15 mm Wrench width 30 mm Suitable for cable outer diameter 10 – 17 mm Shock resistant Yes Working temperature -40 – 100 °C Hexagon angular dimension 30 mm Explosion-tested version No Glass fibre reinforced No Flat cable sealing No Screened No Bend radius protection/trumpet flare No With strain relief Yes Locknut included No Multi cable sealing No Separable (split) screw gland No Snapping in opening No For armoured cable No EMC-version No Halogen free No · Technical Data Sheet – Click to Download
