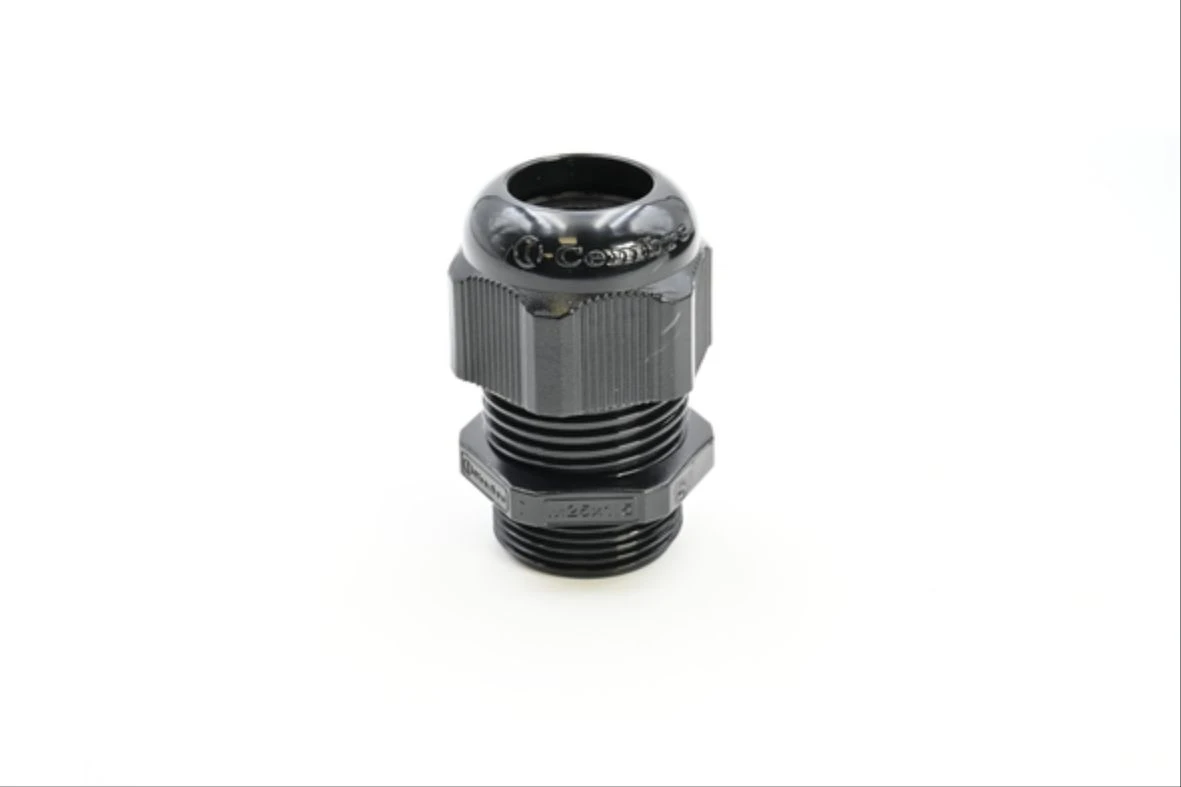

Cembre M25X1.5 Polyamide PA6.6 Reduced Cable Entry Cable Gland Black

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Degree of protection (IP rating) IP68 Material Plastic Model Straight Thread type Metric Colour Black Type of sealing Sealing ring Surface protection Untreated Material qualifier Polyamide (PA) Hexagon angular dimension 30 mm RAL number 9005 Thread length 10 mm Nominal thread size metric/PG 25 Spanner width 30 mm Pitch thread 1.5 mm Suitable for cable outer diameter 7 – 13 mm Working temperature -40 – 100 °C Shock resistant No With strain relief Yes Screened No Halogen free No For armoured cable No Snapping in opening No Explosion-tested version No Glass fibre reinforced No Flat cable sealing No Separable (split) screw gland No Multi cable sealing No Bend radius protection/trumpet flare No Locknut included No EMC-version No · Technical Data Sheet – Click to Download
