Description

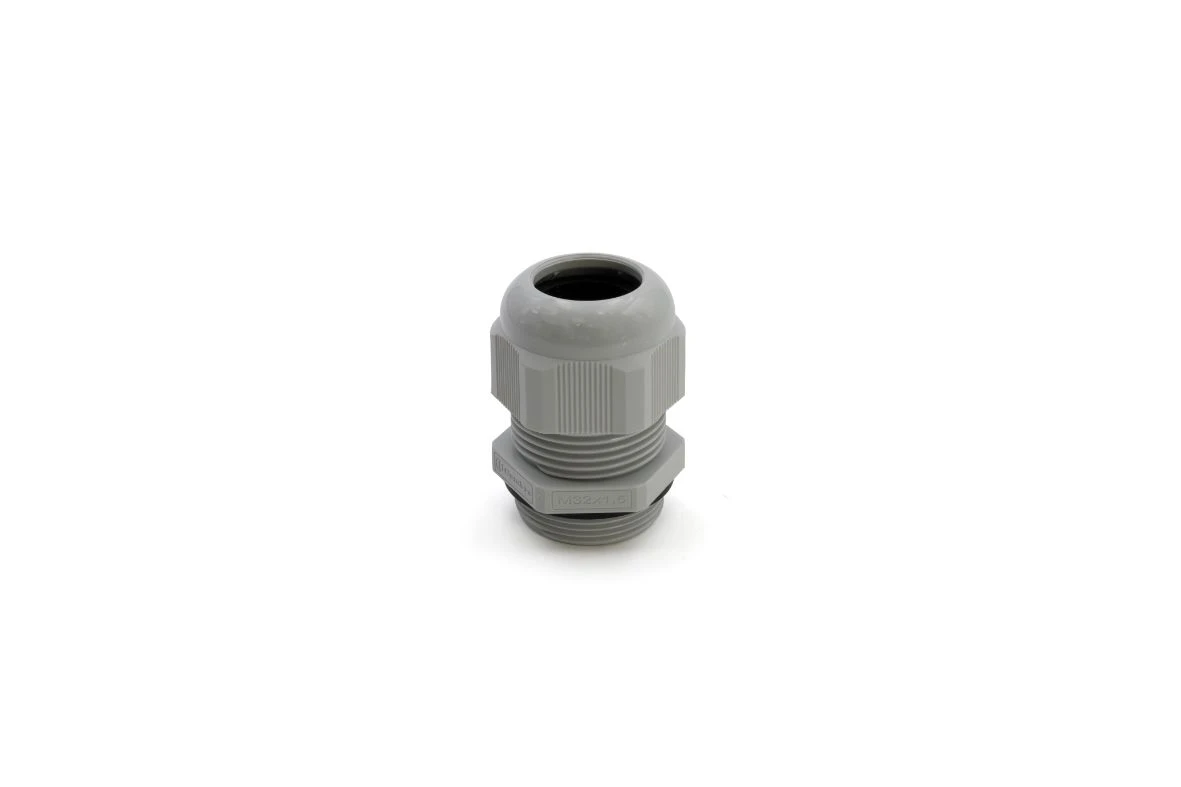

Technical Specifications  Technical Specifications Cable gland Material Plastic Colour Grey Type of sealing Sealing ring For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Degree of protection (IP rating) IP68 Thread type Metric Model Straight RAL number 7035 Hexagon angular dimension 36 mm Nominal thread size metric/PG 32 Thread length 10 mm Pitch thread 1.5 mm Wrench width 36 mm Surface protection Untreated Material qualifier Polyamide (PA) Working temperature -40 – 100 °C Bend radius protection/trumpet flare No EMC-version No Explosion-tested version No With strain relief Yes Shock resistant No Halogen free No Suitable for cable outer diameter 5 – 10 mm Glass fibre reinforced No Screened No Flat cable sealing No Multi cable sealing No Locknut included No Separable (split) screw gland No For armoured cable No Snapping in opening No · Technical Data Sheet – Click to Download
