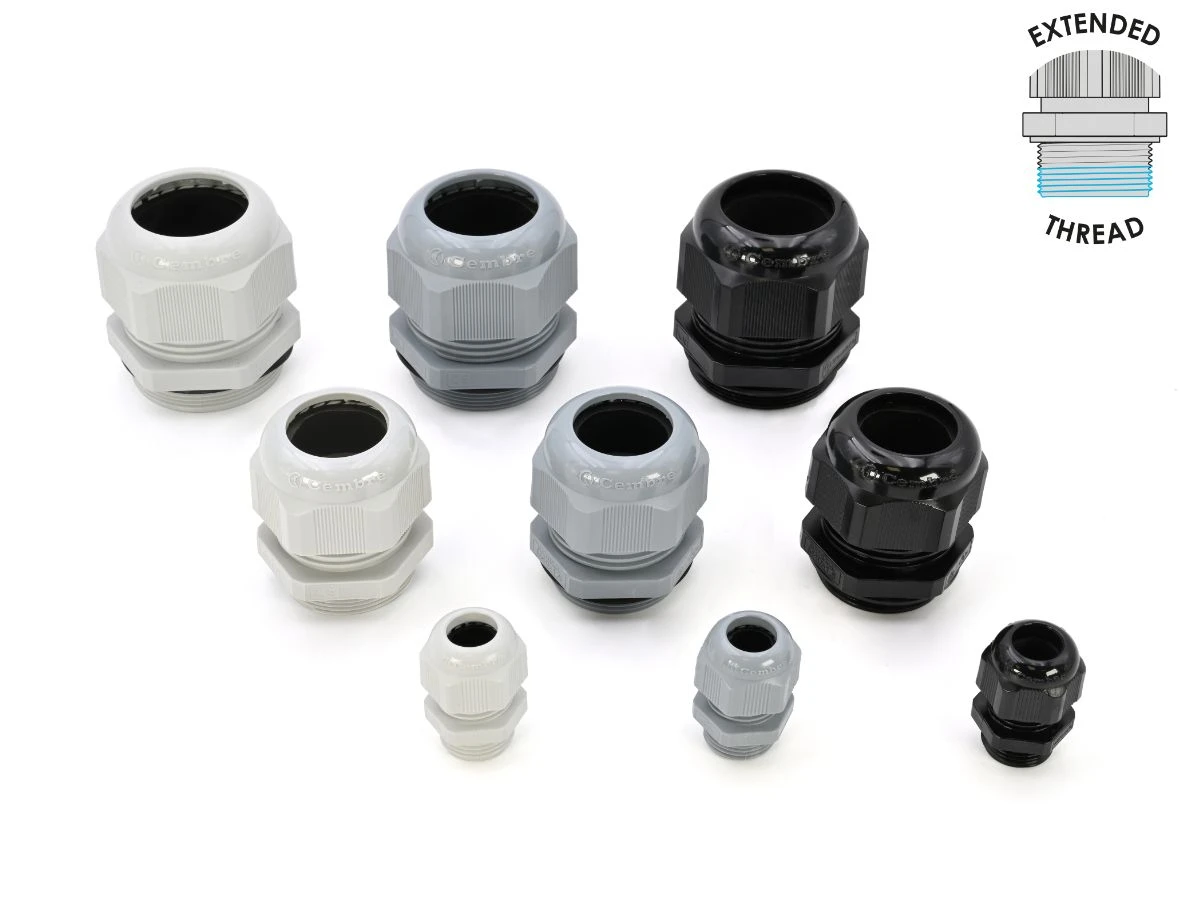

Cembre M32X1.5 Polyamide PA6.6 Extended Thread Cable Gland Light Grey
Cembre M32X1.5 Polyamide PA6.6 Extended Thread Cable Gland Light Grey
Cembre M32X1.5 Polyamide PA6.6 Extended Thread Cable Gland Light Grey - Image 2
Cembre M32X1.5 Polyamide PA6.6 Extended Thread Cable Gland Light Grey - Image 3
Cembre M32X1.5 Polyamide PA6.6 Extended Thread Cable Gland Light Grey - Image 4

Cembre M32X1.5 Polyamide PA6.6 Extended Thread Cable Gland Light Grey

£3.85 Incl. VAT

M32x1.5 Polyamide PA6.6 Extended Thread Cable Gland light grey · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 7035 Light Grey · · CE Marking

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1901.M32 Categories: , , Brand: Product Code: 2500919476

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Colour Grey Material Plastic Degree of protection (IP rating) IP68 Thread type Metric Type of sealing Sealing ring Model Straight RAL number 7035 Material qualifier Polyamide (PA) Nominal thread size metric/PG 32 Thread length 15 mm Pitch thread 1.5 mm Spanner width 36 mm Hexagon angular dimension 36 mm Working temperature -40 – 100 °C Suitable for cable outer diameter 13 – 21 mm Flat cable sealing No EMC-version No Glass fibre reinforced No Multi cable sealing No Separable (split) screw gland No Explosion-tested version No Screened No With strain relief Yes Bend radius protection/trumpet flare No Locknut included No Shock resistant Yes Halogen free No For armoured cable No Snapping in opening No · Technical Data Sheet – Click to Download
