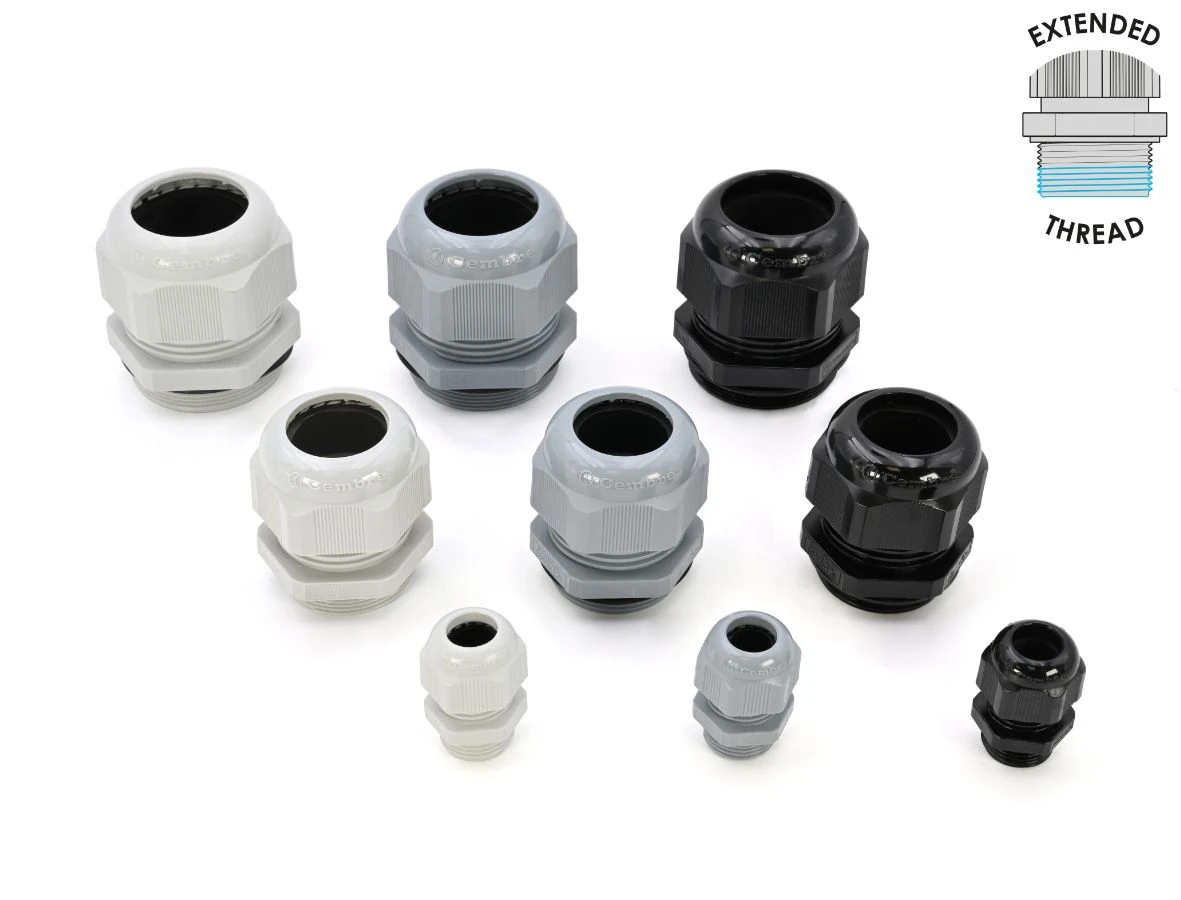

Cable Gland M40
Cable Gland M40
Cable Gland M40 - Image 2
Cable Gland M40 - Image 3

Cable Gland M40

£5.27 Incl. VAT

M40x1.5 Polyamide PA6.6 Extended Thread Cable Gland black · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 9005 Black · · CE Marking

68 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1901.M40N Categories: , , Brand: Part Number: 1051115873

Description

Technical Specifications  Technical Specifications Cable gland Material Plastic Type of sealing Sealing ring For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Degree of protection (IP rating) IP68 Colour Black Thread type Metric Nominal thread size metric/PG 40 RAL number 9005 Thread length 18 mm Wrench width 46 mm Pitch thread 1.5 mm Hexagon angular dimension 46 mm Material qualifier Polyamide (PA) Model Straight Suitable for cable outer diameter 19 – 28 mm Multi cable sealing No Glass fibre reinforced No EMC-version No Snapping in opening No For armoured cable No Separable (split) screw gland No Working temperature -40 – 100 °C Locknut included No Shock resistant Yes Explosion-tested version No Bend radius protection/trumpet flare No Flat cable sealing No Screened No With strain relief Yes Halogen free No
