Cable Gland M40

£4.86 Incl. VAT

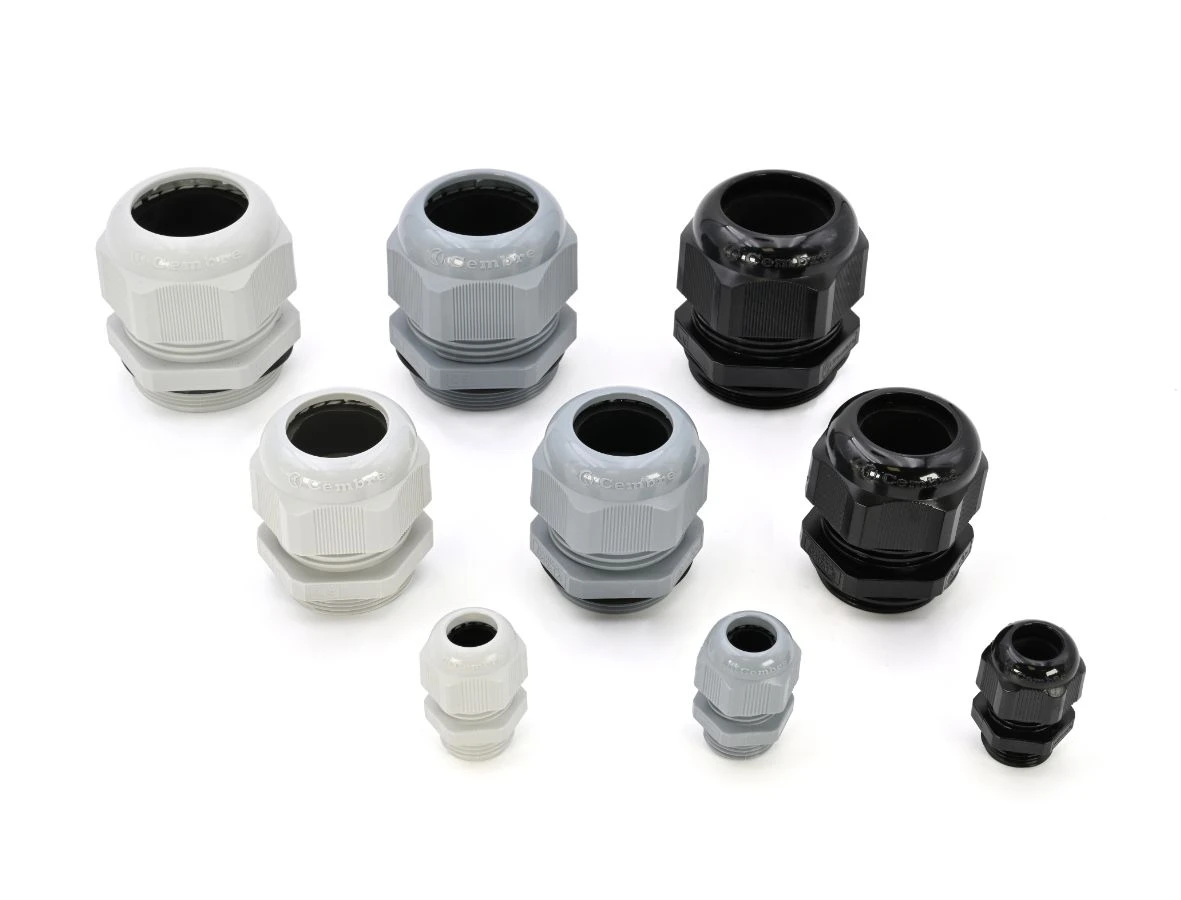

M40x1.5 Polyamide PA6.6 Cable Gland light grey · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 7035 Light Grey · · CE Marking

293 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1900.M40 Categories: , , Brand: Part Number: 2500923849

Description

Technical Specifications  Technical Specifications Cable gland Material Plastic For ATEX classification, Ex-zone dust None Type of sealing Sealing ring Colour Grey For ATEX classification, Ex-zone gas None Degree of protection (IP rating) IP68 Thread type Metric Model Straight Material qualifier Polyamide (PA) Surface protection Untreated RAL number 7035 Working temperature -40 – 100 °C Shock resistant No Suitable for cable outer diameter 19 – 28 mm Hexagon angular dimension 46 mm Wrench width 46 mm Thread length 10 mm Pitch thread 1.5 mm Nominal thread size metric/PG 40 For armoured cable No Bend radius protection/trumpet flare No Screened No Explosion-tested version No Snapping in opening No Glass fibre reinforced No Halogen free No With strain relief Yes Flat cable sealing No Multi cable sealing No Separable (split) screw gland No EMC-version No Locknut included No · Technical Data Sheet – Click to Download
