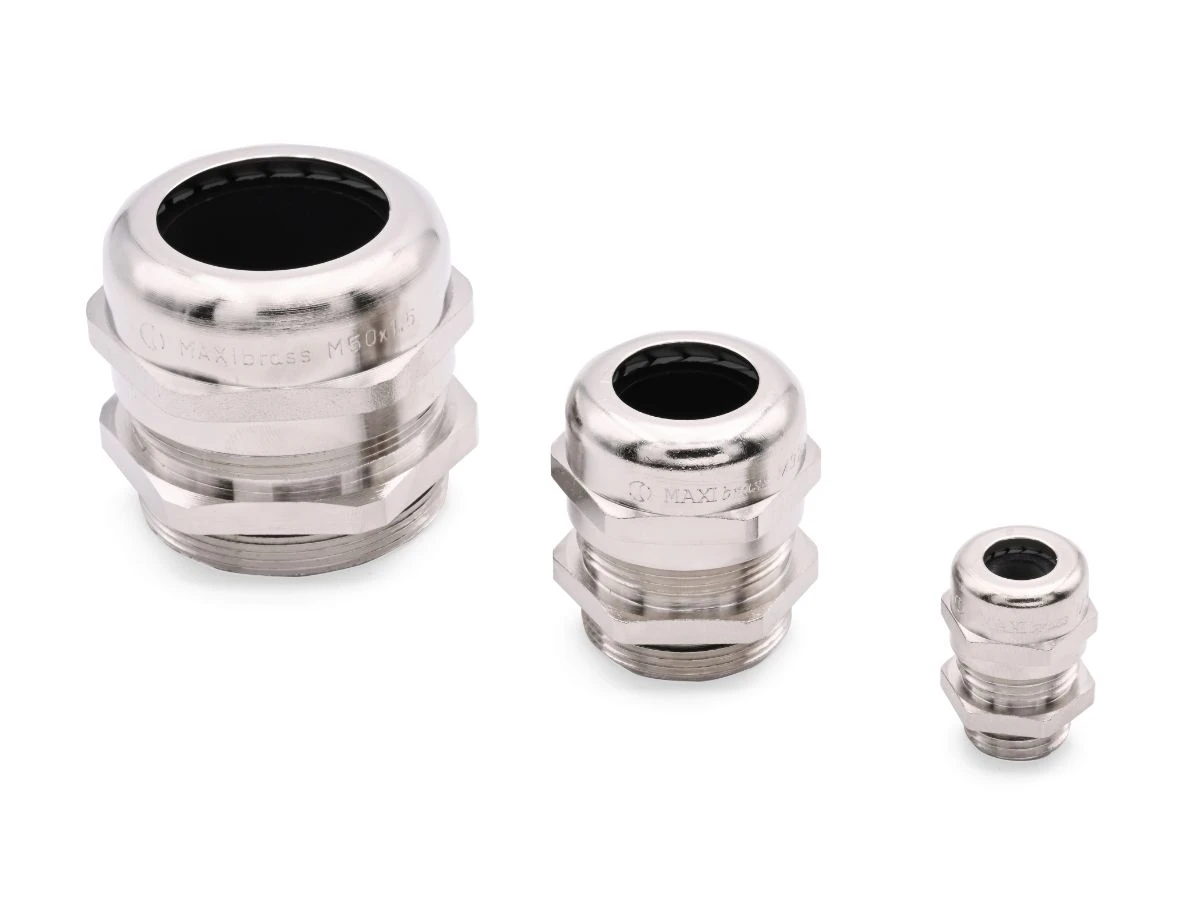

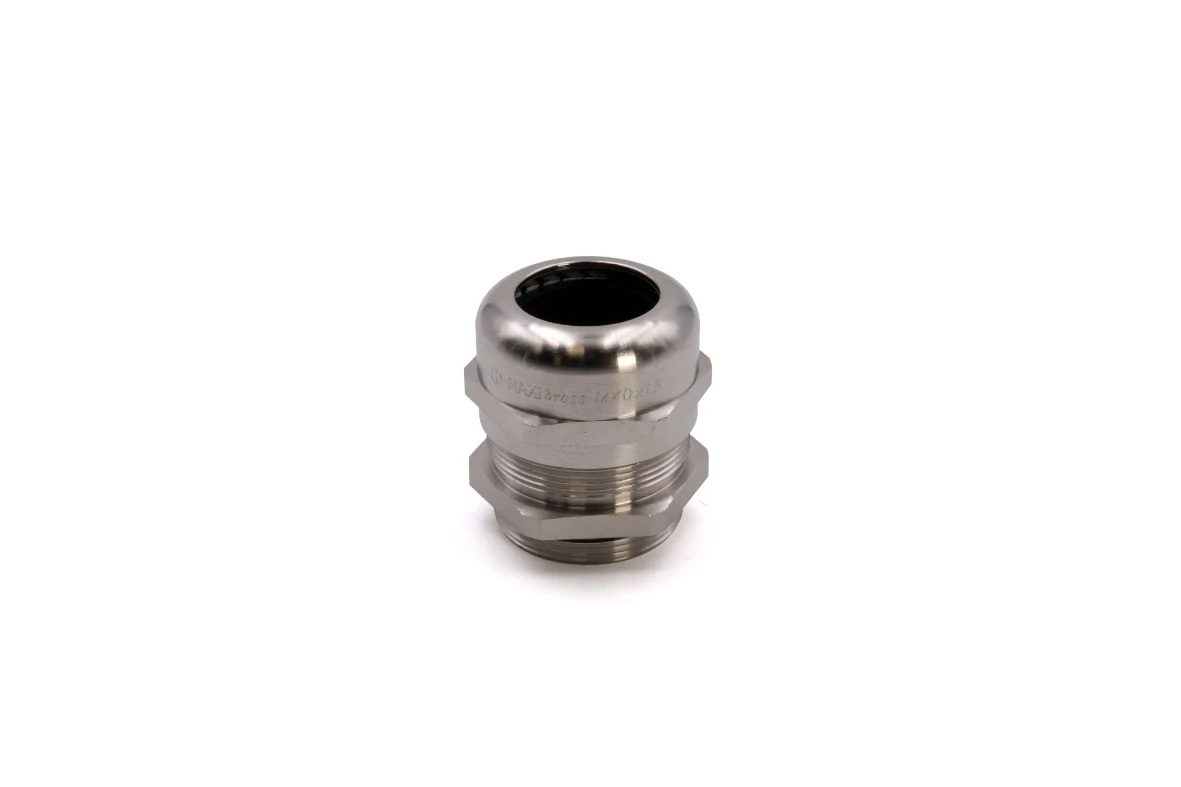

Cembre M40X1.5 Nickel Plated Brass Cable Gland

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 Surface protection Nickel-plated Thread type Metric Model Straight Material Metal Type of sealing Sealing ring Pitch thread 1.5 mm Material qualifier Brass Nominal thread size metric/PG 40 Thread length 9 mm Spanner width 45 mm Hexagon angular dimension 50 mm RAL number – Suitable for cable outer diameter 19 – 28 mm Working temperature -40 – 100 °C Halogen free No EMC-version No Locknut included No Bend radius protection/trumpet flare No With strain relief Yes Screened No Shock resistant No Glass fibre reinforced No Explosion-tested version No Multi cable sealing No Separable (split) screw gland No Flat cable sealing No Snapping in opening No For armoured cable No · Technical Data Sheet – Click to Download
