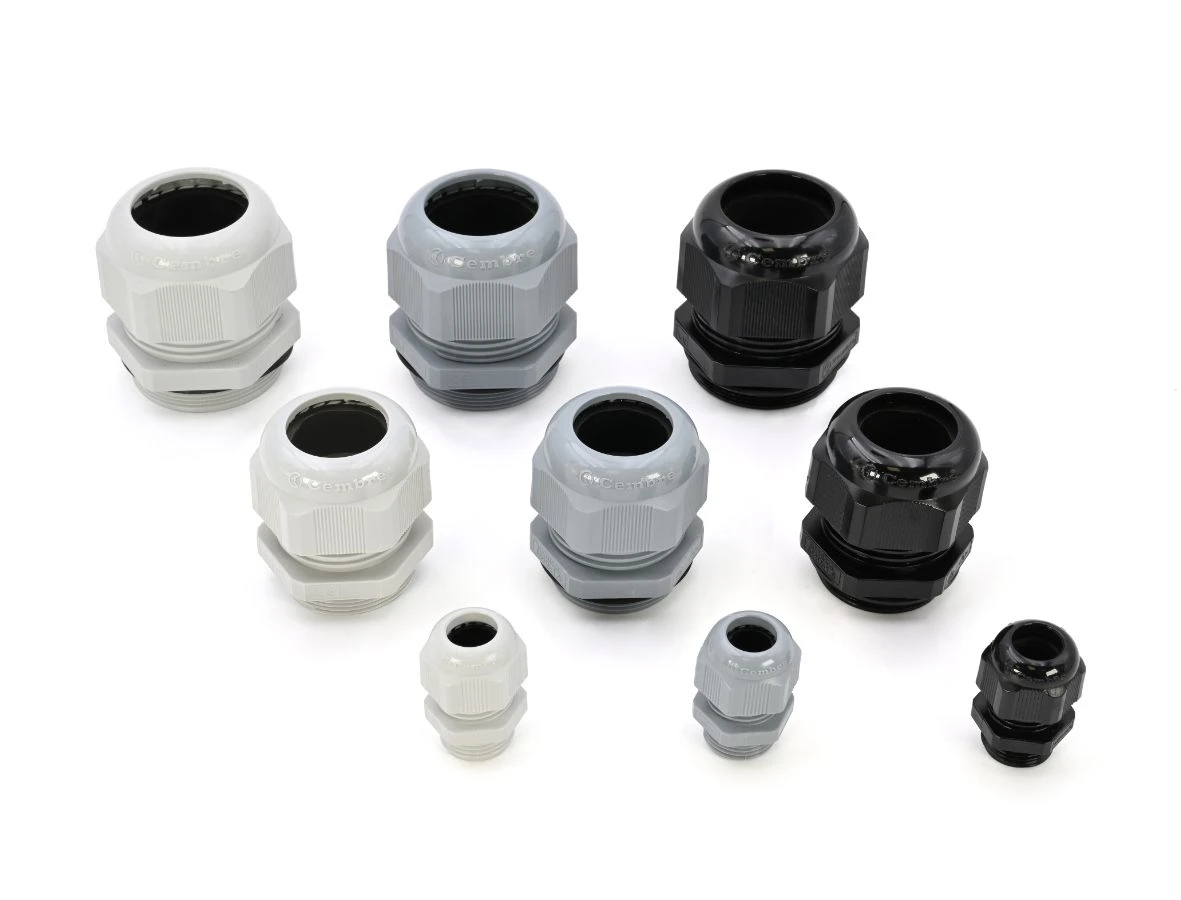

Cembre M40X1.5 Polyamide PA6.6 Cable Gland Black

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Material Plastic Degree of protection (IP rating) IP68 Thread type Metric Model Straight Type of sealing Sealing ring Colour Black Material qualifier Polyamide (PA) Surface protection Untreated Pitch thread 1.5 mm Nominal thread size metric/PG 40 RAL number 9005 Spanner width 46 mm Thread length 10 mm Hexagon angular dimension 46 mm Working temperature -40 – 100 °C Suitable for cable outer diameter 19 – 28 mm Halogen free No Shock resistant No With strain relief Yes Explosion-tested version No Glass fibre reinforced No Bend radius protection/trumpet flare No EMC-version No Screened No Separable (split) screw gland No Flat cable sealing No Multi cable sealing No Snapping in opening No For armoured cable No Locknut included No · Technical Data Sheet – Click to Download
