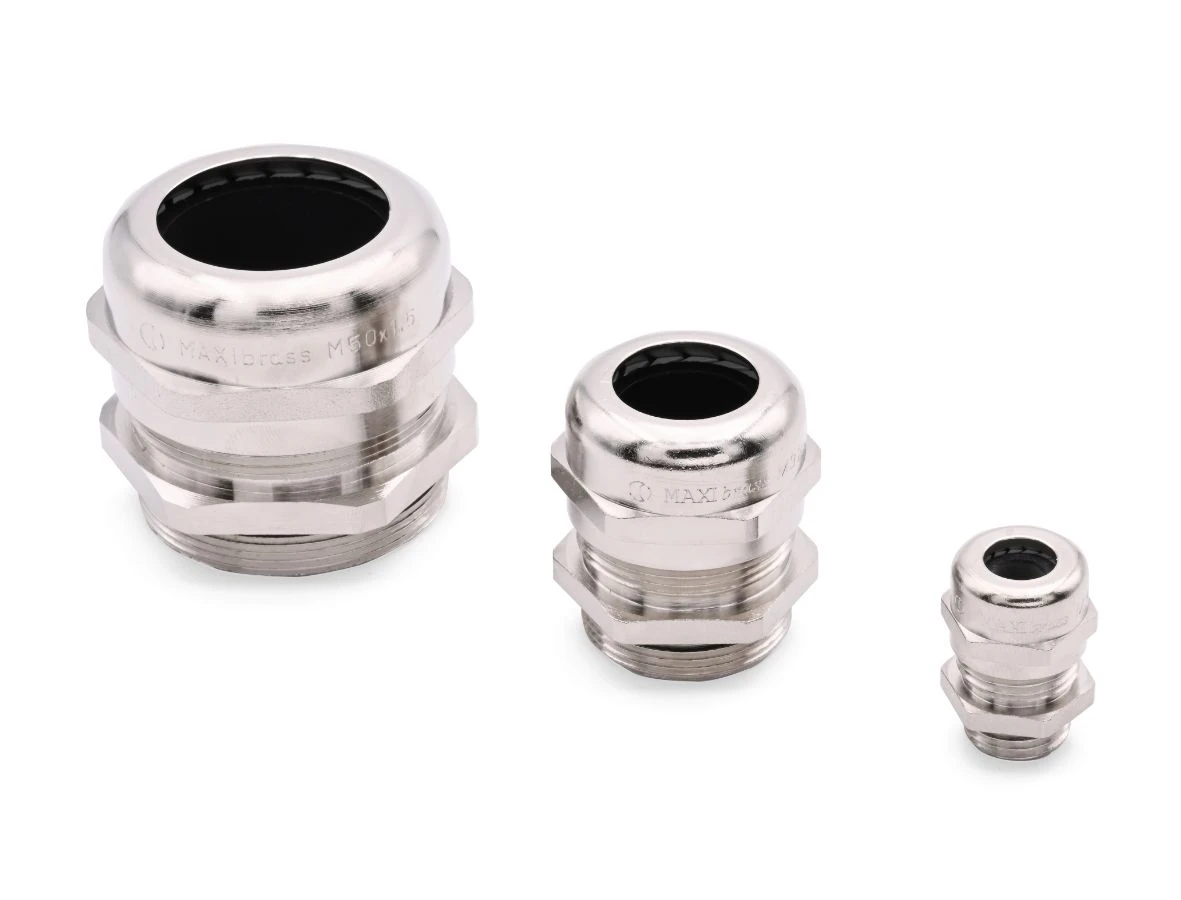

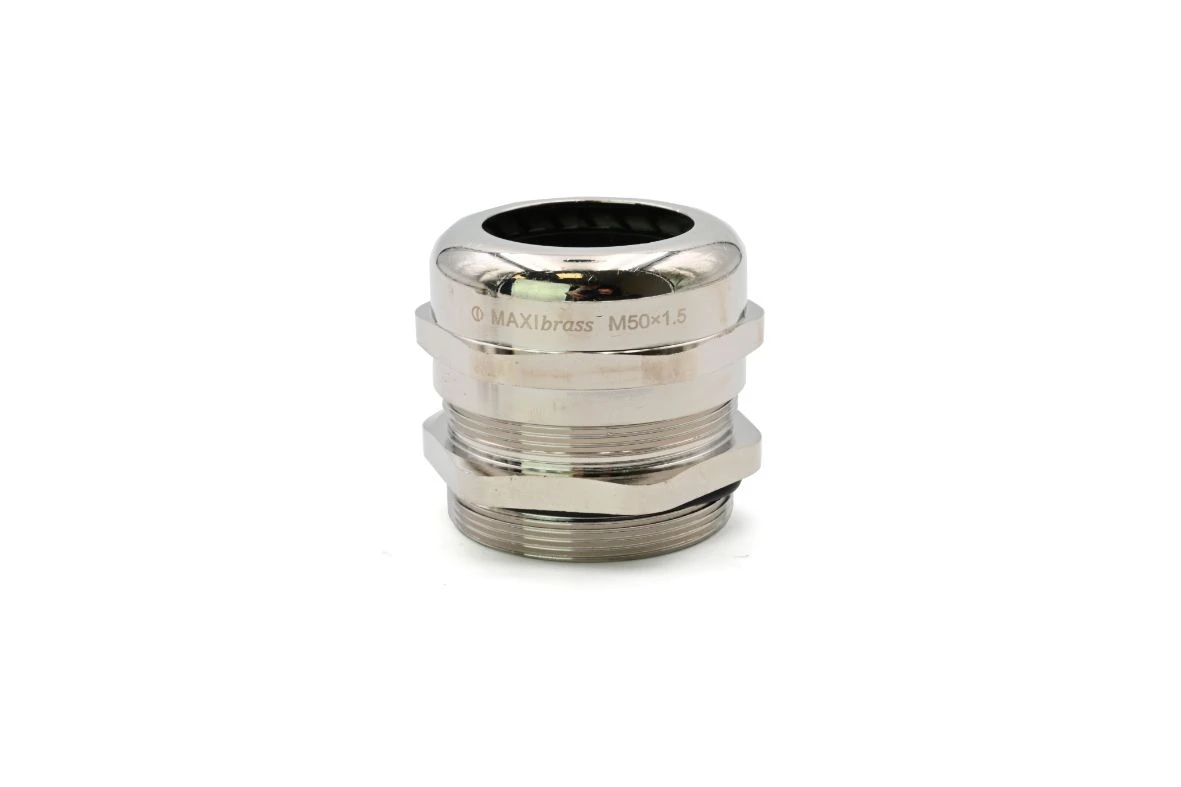

Cembre M50X1.5 Nickel Plated Brass Cable Gland

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Surface protection Nickel-plated Degree of protection (IP rating) IP68 Model Straight Thread type Metric Material Metal Type of sealing Sealing ring RAL number – Material qualifier Brass Spanner width 54 mm Nominal thread size metric/PG 50 Pitch thread 1.5 mm Hexagon angular dimension 60 mm Thread length 10 mm Suitable for cable outer diameter 26 – 35 mm Working temperature -40 – 100 °C Bend radius protection/trumpet flare No With strain relief Yes Shock resistant No Glass fibre reinforced No Screened No Flat cable sealing No Multi cable sealing No Explosion-tested version No For armoured cable No Snapping in opening No EMC-version No Separable (split) screw gland No Locknut included No Halogen free No · Technical Data Sheet – Click to Download
