Cable Gland M50

£9.52 Incl. VAT

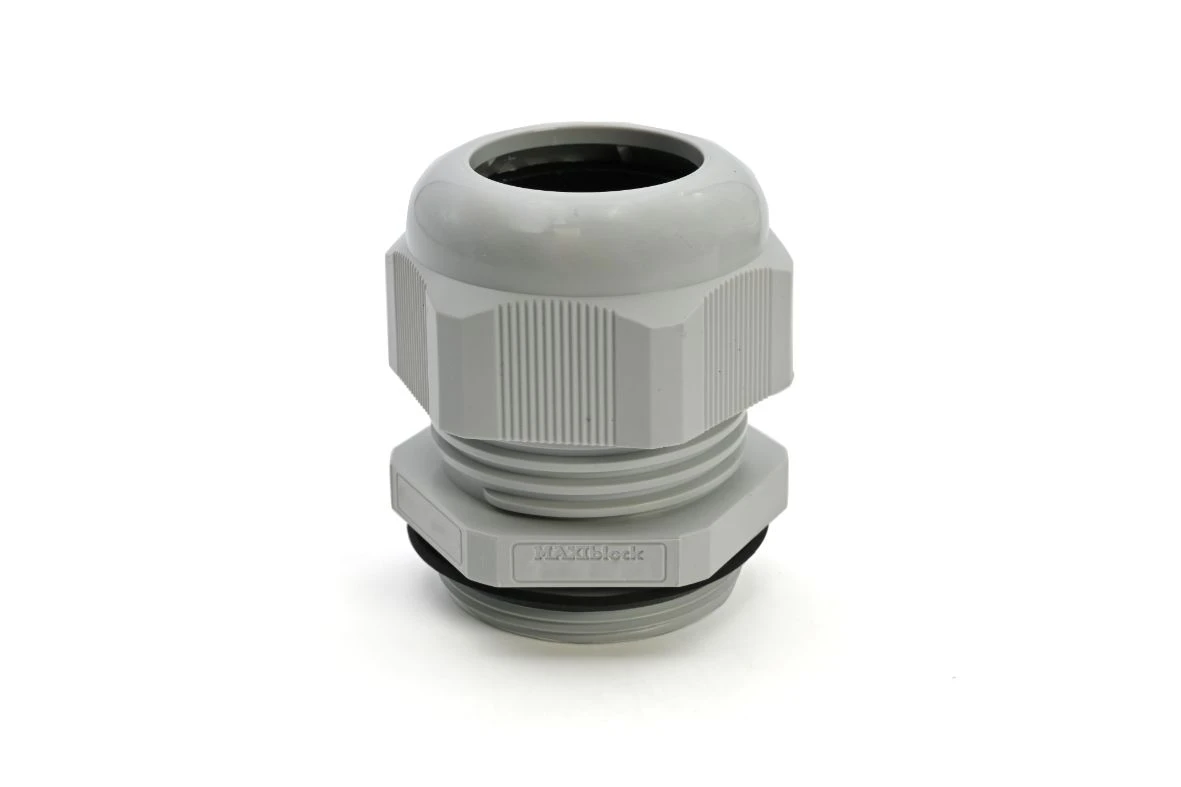

M50x1.5 Polyamide PA6.6 Cable Gland light grey · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 7035 Light Grey · · CE Marking

94 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1900.M50 Categories: , , Brand: Part Number: 2500923851

Description

Technical Specifications  Technical Specifications Cable gland Material Plastic Colour Grey Type of sealing Sealing ring For ATEX classification, Ex-zone gas None Degree of protection (IP rating) IP68 For ATEX classification, Ex-zone dust None Thread type Metric Material qualifier Polyamide (PA) Model Straight Surface protection Untreated Wrench width 55 mm Working temperature -40 – 100 °C Shock resistant No Suitable for cable outer diameter 27 – 35 mm Nominal thread size metric/PG 50 Pitch thread 1.5 mm Hexagon angular dimension 55 mm RAL number 7035 Thread length 12 mm Bend radius protection/trumpet flare No Glass fibre reinforced No Screened No Snapping in opening No For armoured cable No Halogen free No With strain relief Yes Explosion-tested version No Flat cable sealing No Separable (split) screw gland No Locknut included No EMC-version No Multi cable sealing No · Technical Data Sheet – Click to Download
