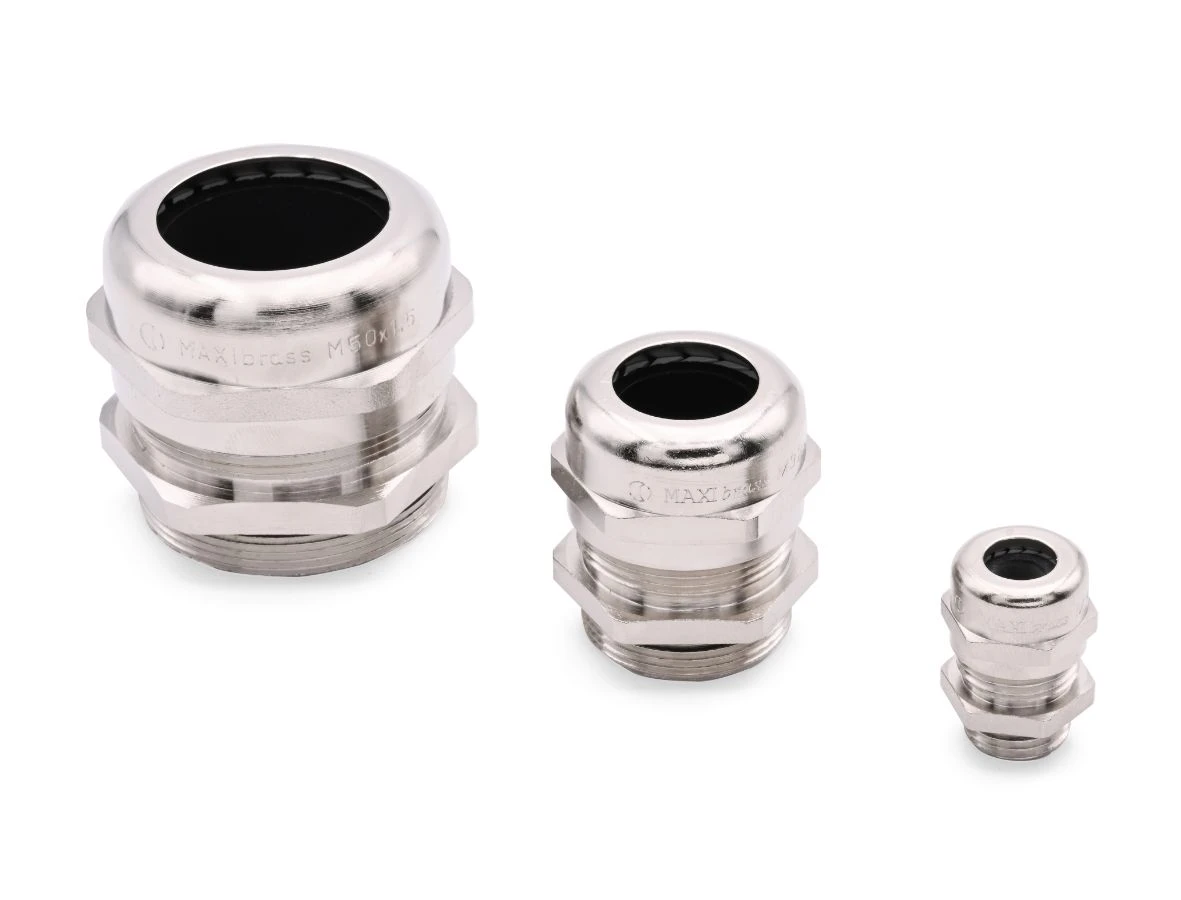

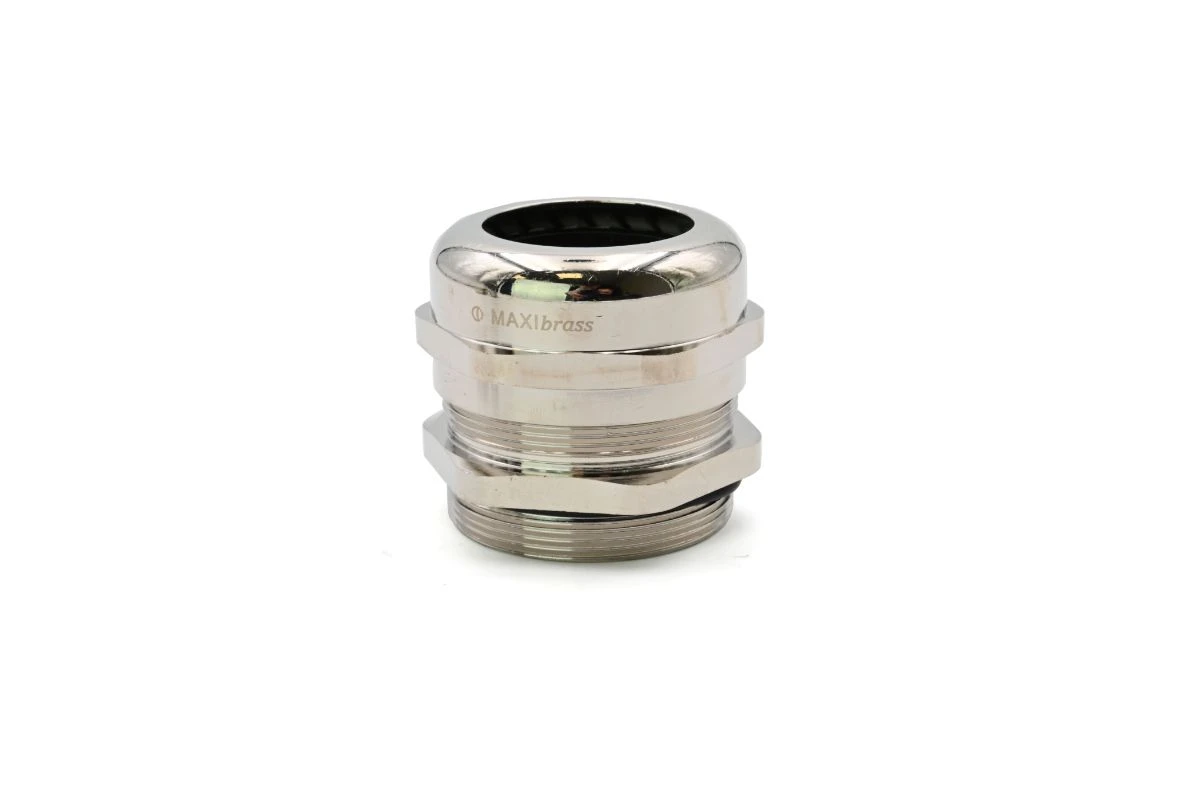

Cembre M63X1.5 Nickel Plated Brass Cable Gland

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Degree of protection (IP rating) IP68 Surface protection Nickel-plated Thread type Metric Model Straight Type of sealing Sealing ring Material Metal Material qualifier Brass Nominal thread size metric/PG 63 Spanner width 67 mm Pitch thread 1.5 mm Thread length 15 mm Hexagon angular dimension 73 mm RAL number – Suitable for cable outer diameter 34 – 45 mm Working temperature -40 – 100 °C Glass fibre reinforced No Locknut included No Bend radius protection/trumpet flare No Flat cable sealing No EMC-version No Explosion-tested version No Shock resistant No With strain relief Yes Screened No Multi cable sealing No Separable (split) screw gland No For armoured cable No Snapping in opening No Halogen free No · Technical Data Sheet – Click to Download
