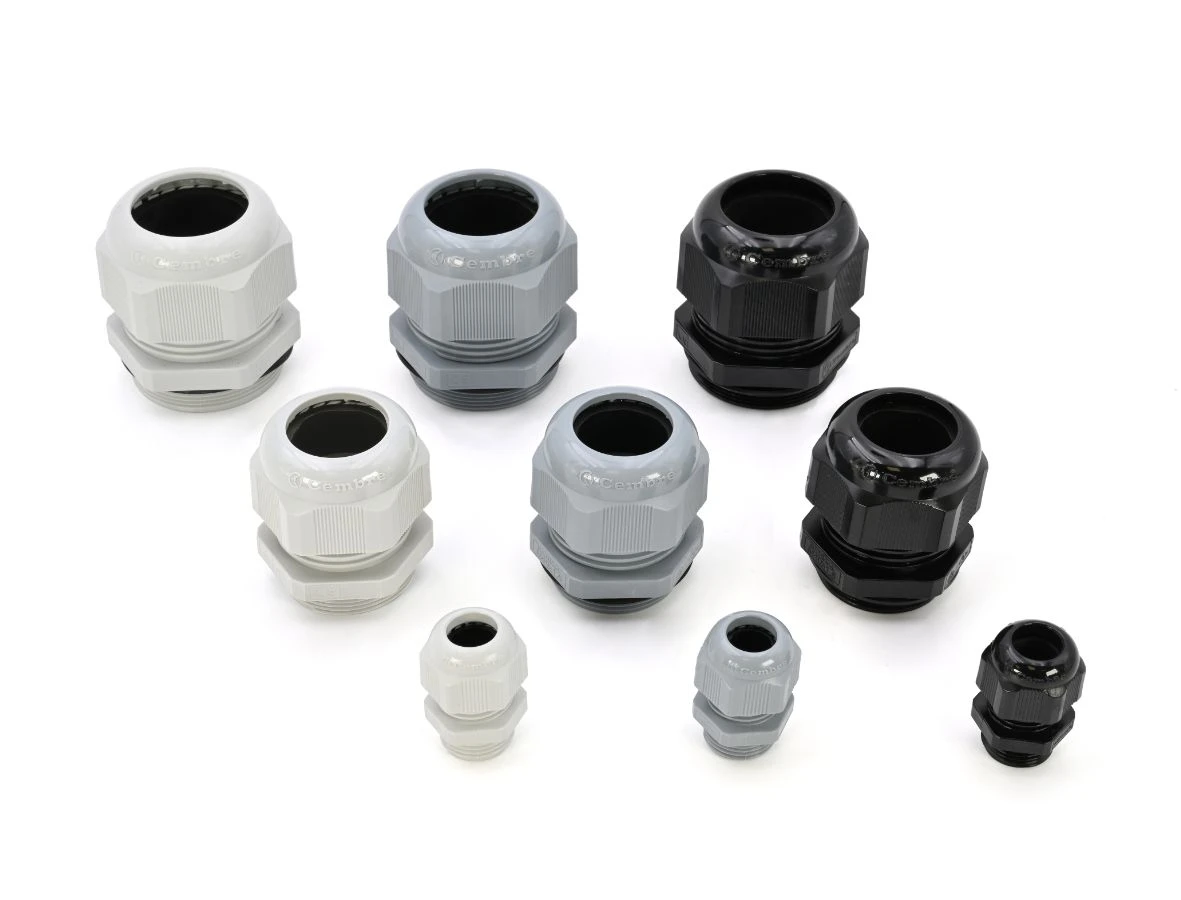

Cembre M63X1.5 Polyamide PA6.6 Cable Gland Black
Cembre M63X1.5 Polyamide PA6.6 Cable Gland Black
Cembre M63X1.5 Polyamide PA6.6 Cable Gland Black - Image 2
Cembre M63X1.5 Polyamide PA6.6 Cable Gland Black - Image 3

Cembre M63X1.5 Polyamide PA6.6 Cable Gland Black

£11.95 Incl. VAT

M63x1.5 Polyamide PA6.6 Cable Gland black · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 9005 Black · · CE Marking

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1900.M63N Categories: , , Brand: Product Code: 2500923856

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Material Plastic Degree of protection (IP rating) IP68 Thread type Metric Model Straight Type of sealing Sealing ring Colour Black Surface protection Untreated Material qualifier Polyamide (PA) Spanner width 66 mm Nominal thread size metric/PG 63 Thread length 12 mm Pitch thread 1.5 mm Hexagon angular dimension 66 mm RAL number 9005 Suitable for cable outer diameter 37 – 45 mm Working temperature -40 – 100 °C Halogen free No Shock resistant No With strain relief Yes Bend radius protection/trumpet flare No Explosion-tested version No Locknut included No EMC-version No Screened No Multi cable sealing No Glass fibre reinforced No Flat cable sealing No Separable (split) screw gland No Snapping in opening No For armoured cable No · Technical Data Sheet – Click to Download
