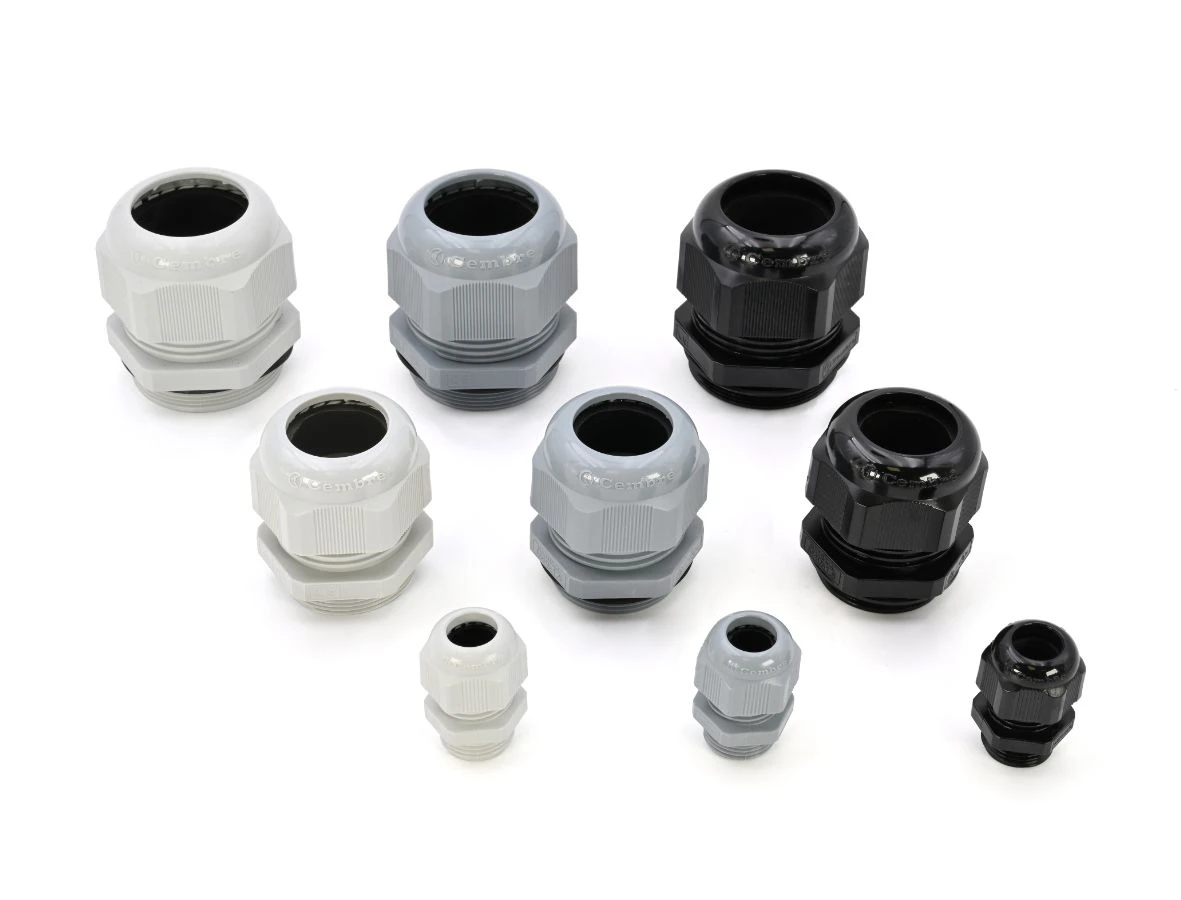

Cembre M63X1.5 Polyamide PA6.6 Cable Gland Dark Grey
£11.95 Incl. VAT
M63x1.5 Polyamide PA6.6 Cable Gland dark grey · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 7001 Dark Grey · · CE Marking
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Cable gland Colour Grey For ATEX classification, Ex-zone gas None Material Plastic Degree of protection (IP rating) IP68 For ATEX classification, Ex-zone dust None Model Straight Thread type Metric Material qualifier Polyamide (PA) Type of sealing Sealing ring Spanner width 66 mm Surface protection Untreated Thread length 12 mm RAL number 7001 Nominal thread size metric/PG 63 Pitch thread 1.5 mm Hexagon angular dimension 66 mm Suitable for cable outer diameter 34 – 45 mm Working temperature -40 – 100 °C Halogen free No Snapping in opening No For armoured cable No Shock resistant No Bend radius protection/trumpet flare No Explosion-tested version No Glass fibre reinforced No Separable (split) screw gland No Multi cable sealing No Screened No With strain relief Yes Locknut included No EMC-version No Flat cable sealing No · Technical Data Sheet – Click to Download
