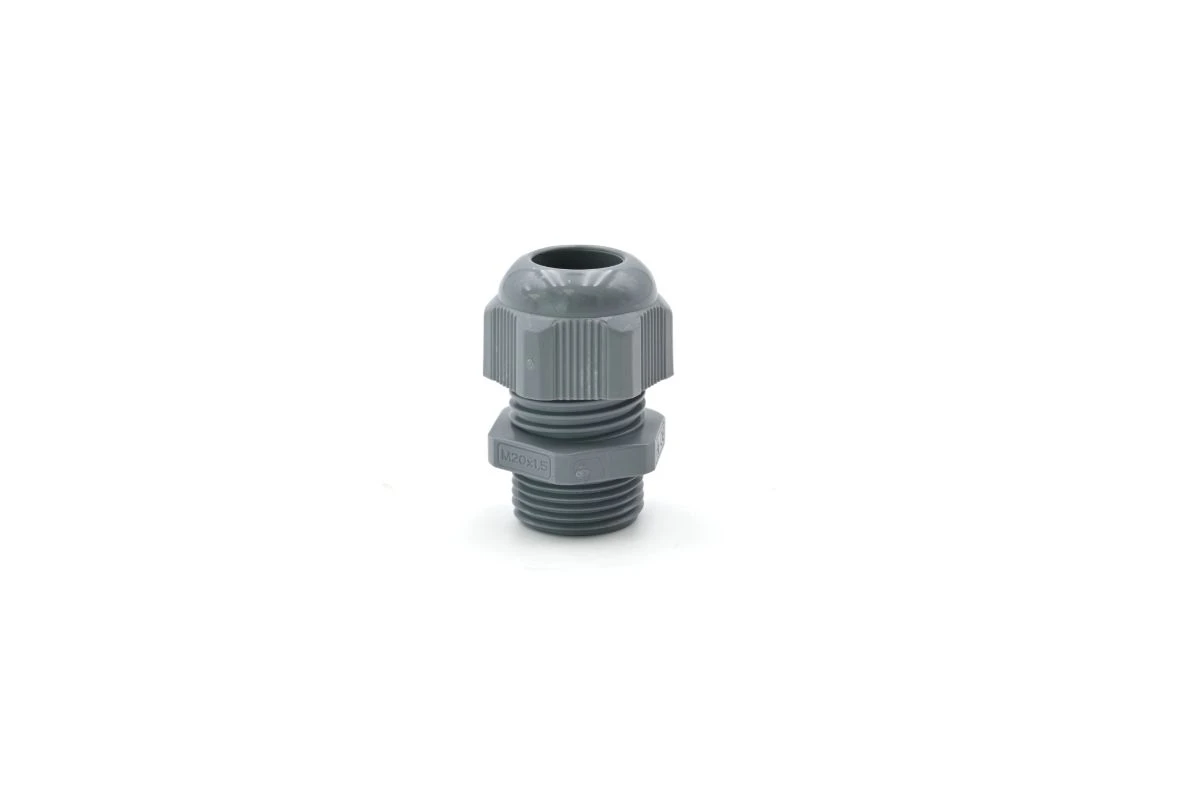

Cembre M20X1.5 Polyamide PA6.6 Cable Gland Dark Grey
Cembre M20X1.5 Polyamide PA6.6 Cable Gland Dark Grey
Cembre M20X1.5 Polyamide PA6.6 Cable Gland Dark Grey - Image 2
Cembre M20X1.5 Polyamide PA6.6 Cable Gland Dark Grey - Image 3
Cembre M20X1.5 Polyamide PA6.6 Cable Gland Dark Grey - Image 4

Cembre M20X1.5 Polyamide PA6.6 Cable Gland Dark Grey

£0.86 Incl. VAT

M20x1.5 Polyamide PA6.6 Cable Gland dark grey · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 7001 Dark Grey · · CE Marking

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1900.M20G Categories: , , Brand: Product Code: 2500543498

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Colour Grey Material Plastic Degree of protection (IP rating) IP68 Model Straight Thread type Metric Type of sealing Sealing ring Material qualifier Polyamide (PA) Surface protection Untreated RAL number 7001 Spanner width 25 mm Pitch thread 1.5 mm Nominal thread size metric/PG 20 Hexagon angular dimension 25 mm Thread length 9 mm Suitable for cable outer diameter 7 – 13 mm Working temperature -40 – 100 °C Shock resistant No Halogen free No Multi cable sealing No Flat cable sealing No Explosion-tested version No Glass fibre reinforced No Bend radius protection/trumpet flare No Separable (split) screw gland No Locknut included No Screened No With strain relief Yes EMC-version No Snapping in opening No For armoured cable No · Technical Data Sheet – Click to Download
