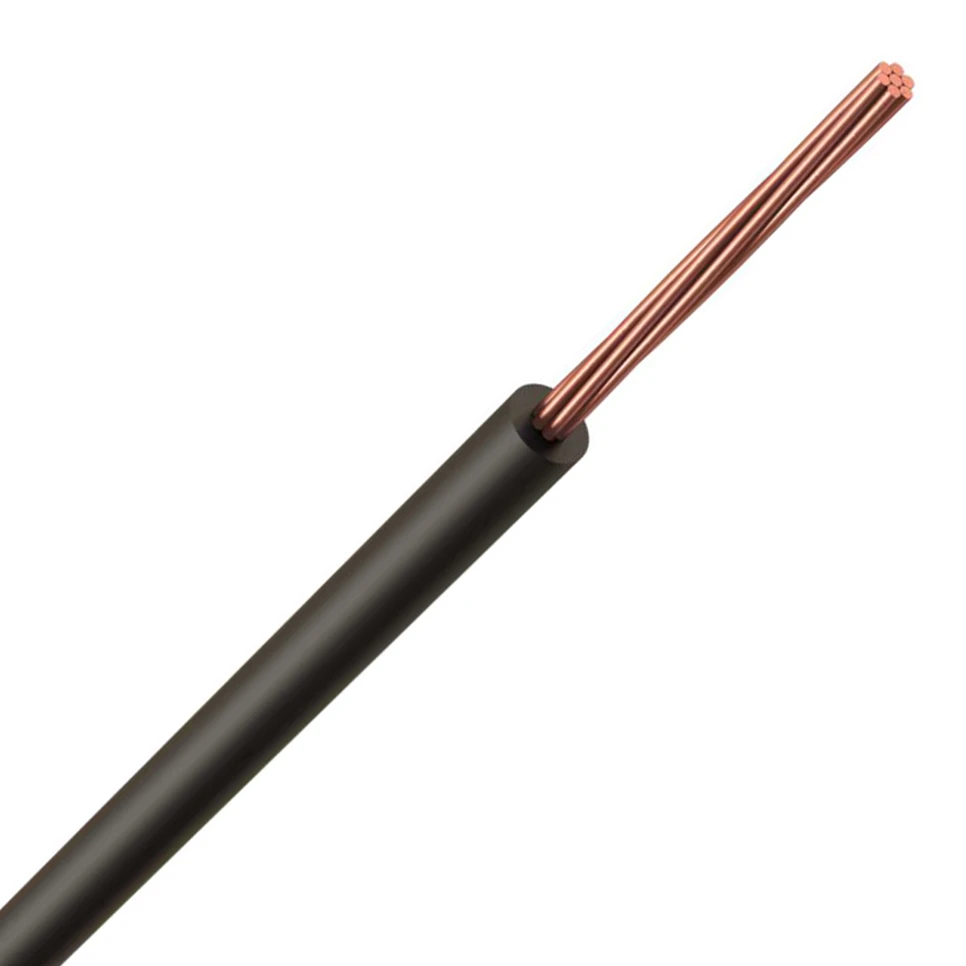

Commodity Cables 6491B 1.5mm² Black Basec Cable Single 1-Core
£39.60 Incl. VAT
This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491B1.5 is a General Purpose Single Core Cable for use in conduit and trunking. 6491B Cable also known as HO7Z-R is a plain annealed copper stranded circular conductor. Produces low levels of smoke and fumes under fire conditions. · · · BS7211 LSOH Insulated non sheathed cable · · Single Core for use in conduit & trunking · · Plain annealed stranded copper conductors · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Conductor category Class 2 = stranded Core colour Blue Conductor material Copper Sheath colour Brown Conductor surface Bare Core identification Colour Max. conductor temperature 90 °C Number of cores 1 Outer diameter approx. 3 mm Conductor Diameter 1.5 mm Nominal voltage U0 450 V Nominal voltage U 750 V Nominal cross sectional area of conductor 1.5 mm² Permitted cable outer temperature during assembling/handling 0 – 80 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Twisted cores No · Technical Data Sheet – Click to Download
