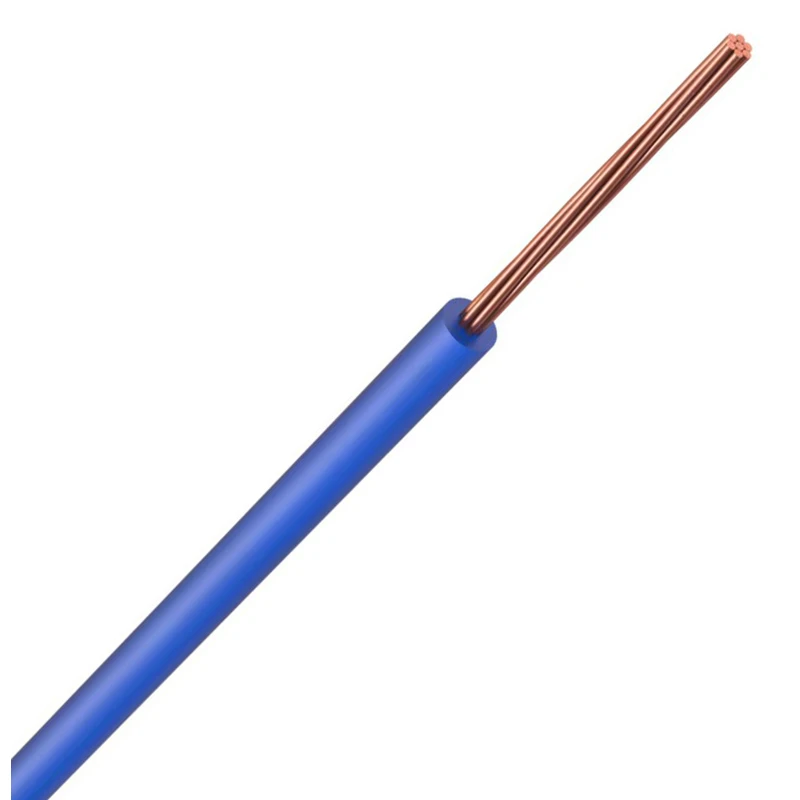

Commodity Cables 6491B 1.5mm² Blue Basec Cable Single 1-Core
£39.60 Incl. VAT
This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. A general purpose single-core cable for use in conduit and trunking. The 6491B cable also known as HO7Z-R, is a plain annealed copper stranded circular conductor and it is suitable for is suitable for power, conduit wiring, lighting networks, switchgear, · · · BS7211 LSOH Insulated non sheathed cable · · Single Core for use in conduit & trunking · · Plain annealed stranded copper conductors · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Conductor category Class 2 = stranded Core colour Blue Conductor material Copper Sheath colour Brown Conductor surface Bare Core identification Colour Outer diameter approx. 3 mm Max. conductor temperature 90 °C Nominal voltage U0 450 V Number of cores 1 Nominal voltage U 750 V Conductor Diameter 1.5 mm Nominal cross sectional area of conductor 1.5 mm² Permitted cable outer temperature during assembling/handling 0 – 80 °C Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
