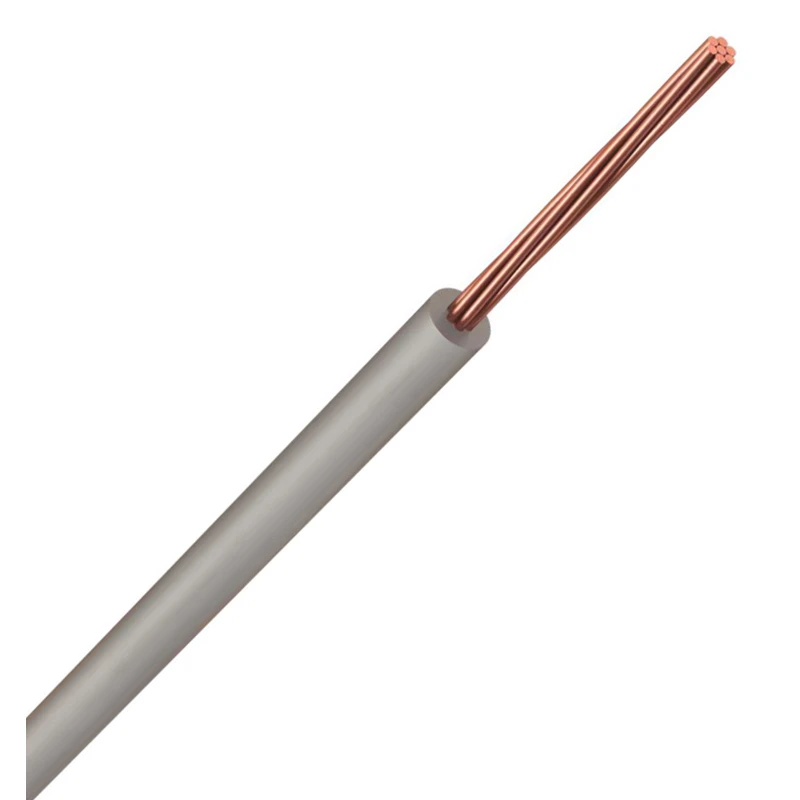

Commodity Cables 6491B 2.5mm² Grey Basec Cable Single 1-Core

SKU: 6491B-2.5-GRY100 CABLE-RXGo Magpie ID: 5060062343904

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491B2.5 (also known as HO7Z-R) is a general purpose single core cable made up of a plain annealed copper stranded circular conductor complete with low smoke and zero halogen (LSZH) sheathing for use in conduit and trunking. Ideal in applications where fire, smoke, emissions and toxic fumes would create a potential threat · · · BS7211 LSOH Insulated non sheathed cable · · Single Core for use in conduit & trunking · · Plain annealed stranded copper conductors · · No. of cores: 1 · · Product Packaging: Reel · · Cut to Various Lengths: No · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41 · · Standard: BS EN 50525-3-41

£62.04inc VAT£51.70 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Conductor category Class 2 = stranded Sheath colour Blue Conductor material Copper Core identification Colour Core colour Blue Outer diameter approx. 3.7 mm Nominal voltage U0 450 V Max. conductor temperature 90 °C Conductor Diameter 2.5 mm Number of cores 1 Nominal voltage U 750 V Nominal cross sectional area of conductor 2.5 mm² Permitted cable outer temperature during assembling/handling 0 – 80 °C Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
