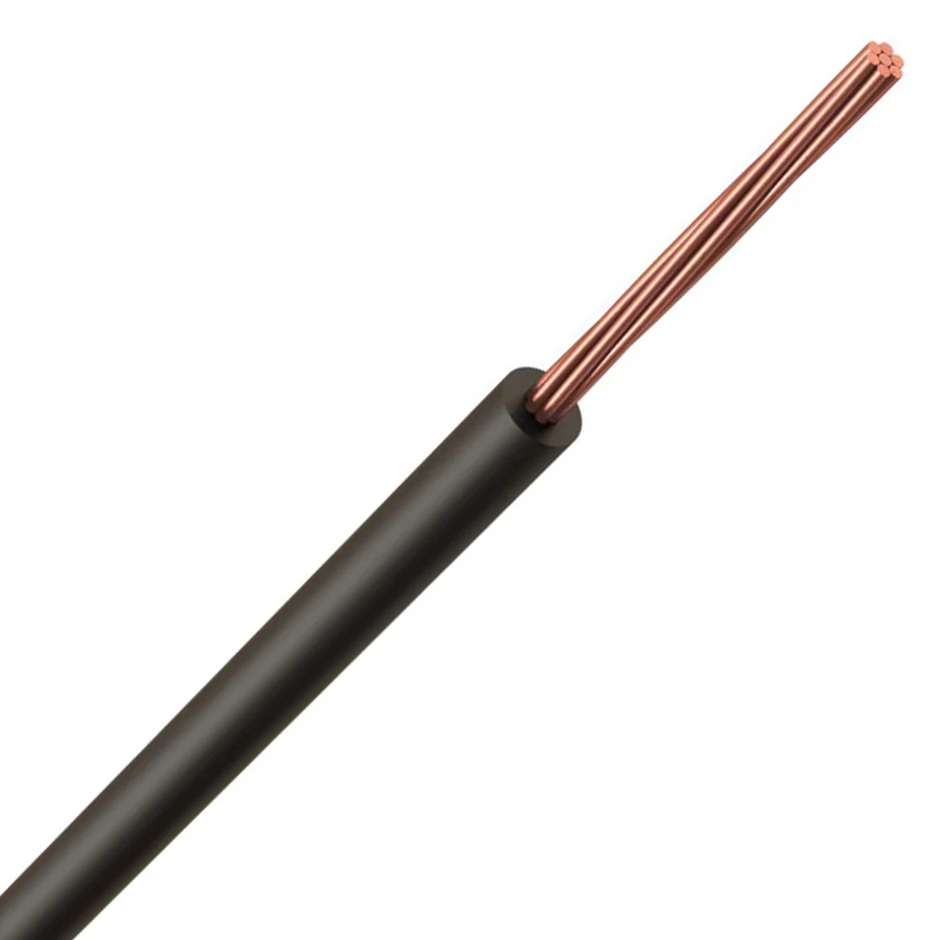

Commodity Cables 6491X 2.5mm² Black PVC Basec Cable Single 1-Core
£56.76 Incl. VAT
This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491X2.5 is a General Purpose Single Core Cable for use in conduit and trunking. 6491X Cable also known as H07-U and H07-R is a plain annealed copper stranded circular conductor. It is installed in surface mounted or embedded conduit or similar closed sys · · · Cable Size: 2.5mm² · · Colour: Black · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Conductor category Class 2 = stranded Core colour Blue Sheath colour Blue Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Conductor surface Bare Core identification Colour Nominal voltage U0 450 V Max. conductor temperature 70 °C Min. permitted bending radius, stationary application/permanent installation 22 mm Number of cores 1 Outer diameter approx. 3.6 mm Conductor Diameter 2.5 mm Nominal voltage U 750 V Nominal cross sectional area of conductor 2.5 mm² Permitted cable outer temperature during assembling/handling 0 – 60 °C Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
