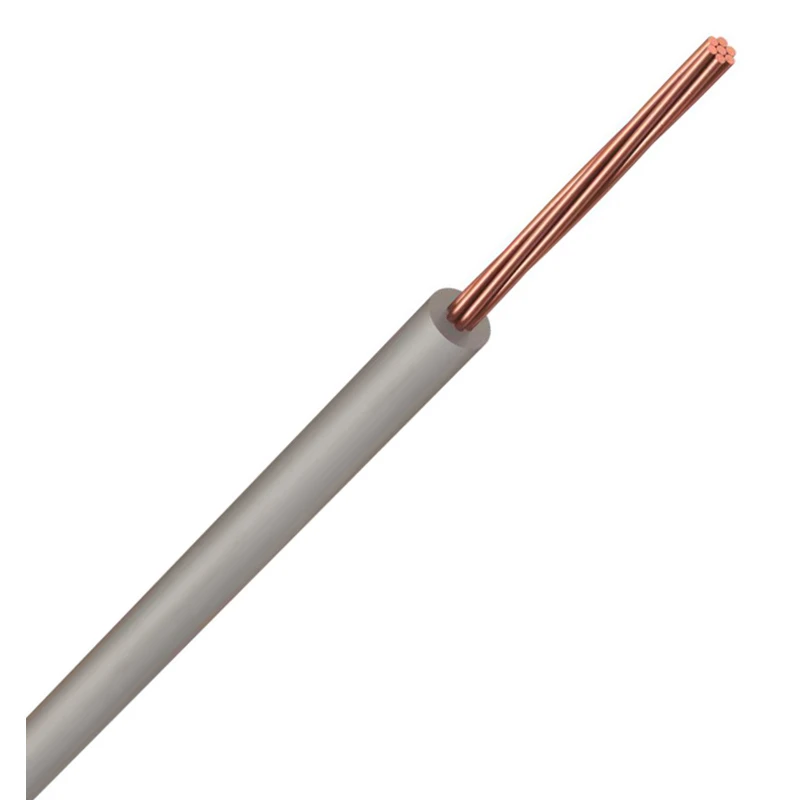

Commodity Cables Cable Single Core Conduit Wire PVC Priced Per Mtr 2.5mm Grey

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Core colour Blue Armouring/reinforcement None Sheath colour Blue Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Core identification Colour Nominal cross sectional area of conductor 2.5 mm² Number of cores 1 Outer diameter approx. 3.6 mm Min. permitted bending radius, stationary application/permanent installation 22 mm Conductor surface Bare Conductor Diameter 2.5 mm Max. conductor temperature 70 °C Nominal voltage U0 450 V Nominal voltage U 750 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Twisted cores No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
