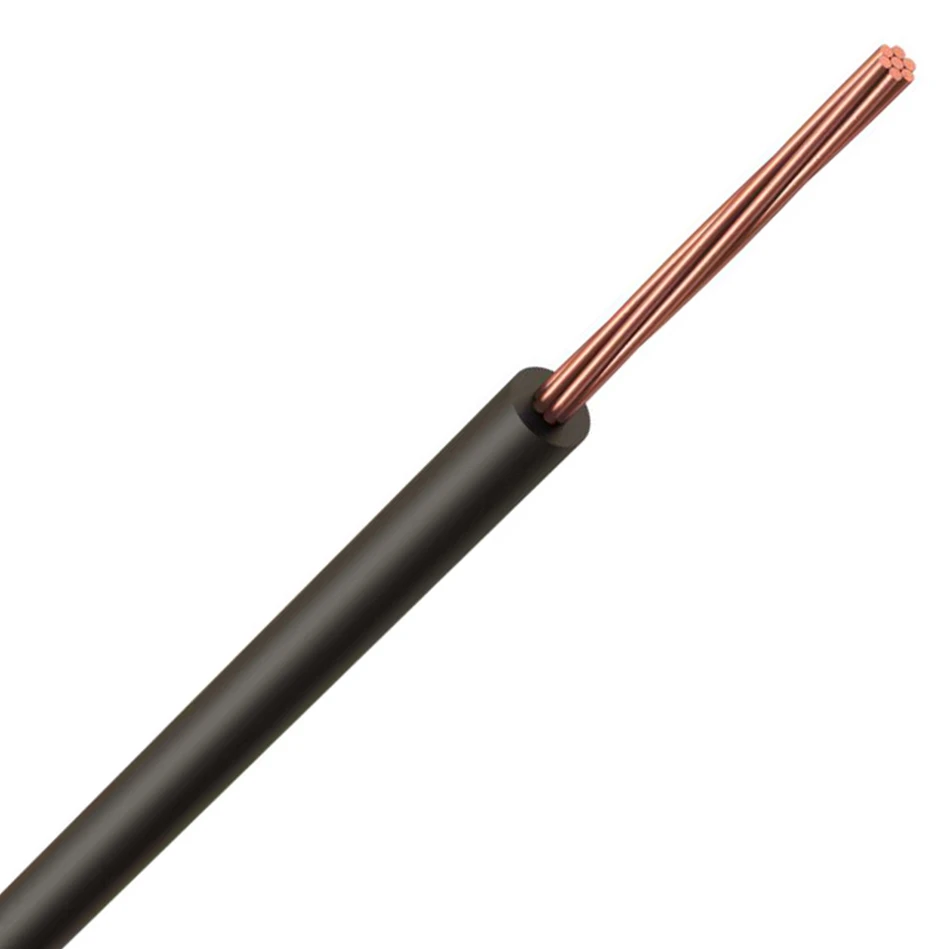

Cable Single Core Conduit Wire PVC Priced Per Mtr 6mm Black
Cable Single Core Conduit Wire PVC Priced Per Mtr 6mm Black
Cable Single Core Conduit Wire PVC Priced Per Mtr 6mm Black - Image 2
Cable Single Core Conduit Wire PVC Priced Per Mtr 6mm Black - Image 3
Cable Single Core Conduit Wire PVC Priced Per Mtr 6mm Black - Image 4

Cable Single Core Conduit Wire PVC Priced Per Mtr 6mm Black

£131.10 Incl. VAT

Minimum order: 100 units.

800 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-6.0 Categories: , , Brand: Part Number: 2500000586

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Sheath colour Blue Armouring/reinforcement None Conductor material Copper Core colour Blue Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Core identification Colour Nominal voltage U 750 V Nominal cross sectional area of conductor 6 mm² Nominal voltage U0 450 V Twisted cores No Permitted cable outer temperature during assembling/handling 0 – 60 °C Min. permitted bending radius, stationary application/permanent installation 29 mm Conductor Diameter 6 mm Number of cores 1 Outer diameter approx. 4.7 mm Max. conductor temperature 70 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
