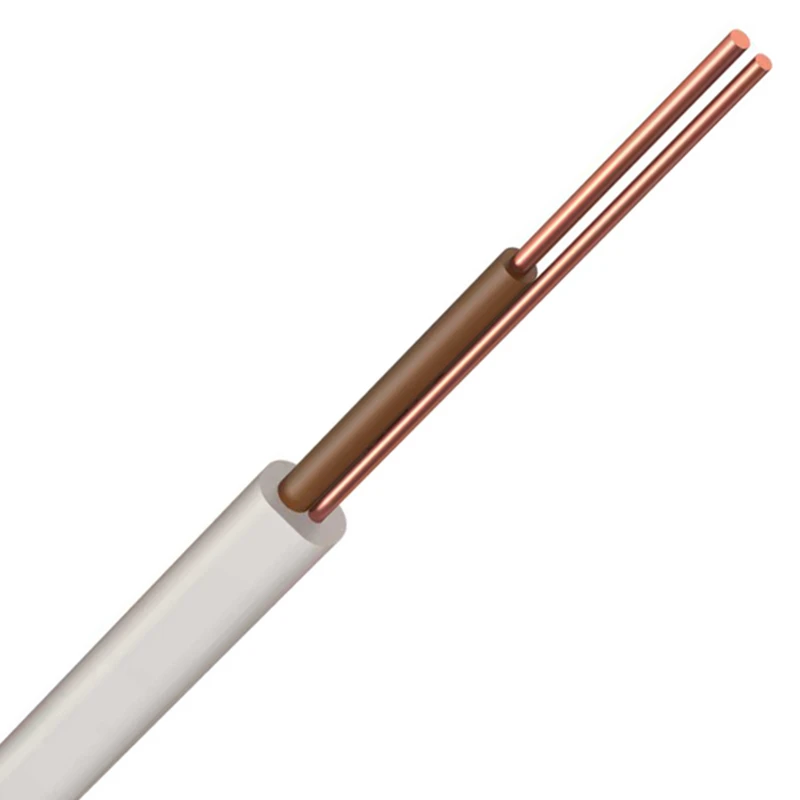

Commodity Cables Cable Single Core & Earth PVC Price Per Mtr 1.5mm Grey/Brown

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Grey Conductor category Class 1 = solid Core colour Several Protective barrier None Conductor Diameter 1.5 mm Nominal cross sectional area of conductor 1.5 mm² Core insulation material Polyvinyl chloride (PVC) Conductor surface Bare Core identification Colour Sheath material Polyvinyl chloride (PVC) Conductor material Copper Number of cores 1 Nominal voltage U 500 V Nominal voltage U0 300 V Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No Drain wire Yes · Technical Data Sheet – Click to Download
