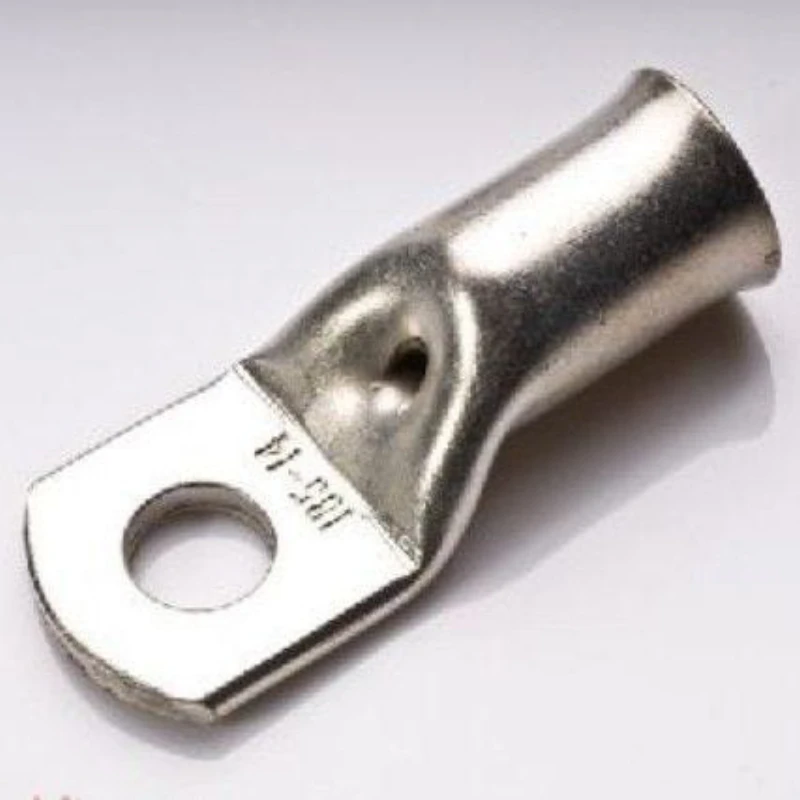

Cablecraft Heavy Duty Copper Tube Terminals For Cable Size 2.5mm² – Stud Size 6mm

Heavy Duty Copper Tube Terminals For Cable Size 2.5mm² – Stud Size 6mm. This HD range is designed primarily for compression crimping onto a wide variety of European stranded and flexible cables. When used with the recommended dies and tooling, they will produce a high tensile crimped joint in accordance with BS4G 178 Part 2 1986 and RSE/STD 024 Part 7 – Issue A (London Underground Approval) E6487 A2. Provided the terminals are crimped onto cables, as laid down in the crimping guide, reliable results, satisfying the above standards, will be obtained. Made from seamless Copper Tube to BSEN 12449: 2016. Fully comply with BS EN 61238-1-2003 and BS 4579. Rating: 3.3Kv. Key Features. For wire size 2.5mm². 6mm stud size. Manufactured from seamless copper tube to BS EN 12449: 2016. Fully comply with BS EN 61238-1-2003 and BS 4579. Ideal for panel builing, telecoms and utilities. · · · Colour: Silver · · For Cable Size (mm²): 2.5
