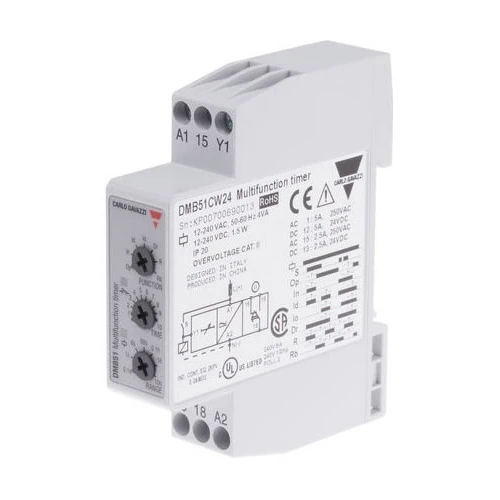

Carlo Gavazzi Timer 12-240V AC/DC
£60.78 Incl. VAT
SPDT MULTIFUNCTION TIMER 12 to 240 VAC/DC · · · Automatic or manual start · · Combined AC and DC power supply · · LED indication for relay status and power supply ON · · For mounting on DIN-rail in accordance with DIN/EN 50 022 · · =0.2% Repeatability
22 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Timer relay Type of electric connection Screw connection Voltage type for actuating AC/DC Width 17.5 mm Height 81 mm Nominal current 5 A Depth 67.2 mm Time range 0.1 – 360000 s Rated control supply voltage at AC 50 Hz 24 – 240 V Function delay-on energization Yes Suitable as remote control No Function pulse shaping No Function star-delta No Suitable for front mounting Yes Rated control supply voltage at DC 24 – 24 V With plug-in socket No Remote operation possible No Suitable for DIN rail (top hat rail) mounting Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
