Ideal CAT6 Feed-Thru Modular Plugs

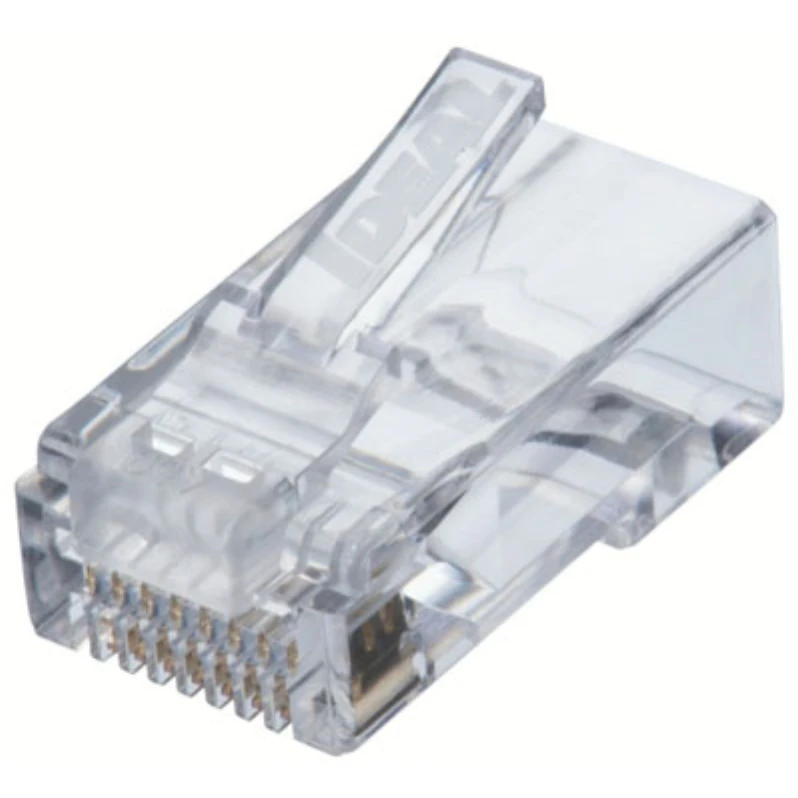

The NEW IDEAL Feed-Thru CAT5e 8P8C (eight position/eight contact) modular plug connector is the first feed-thru style connector and tool solution to offer a flush cut of the excess conductor to the face of the modular plug. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45™ tool (30-495). The flush cut eliminates inadvertent contact among adjacent conductors or with the mating jack. Conductor spacing is maintained for reliable performance in PoE and data applications.Feed-Thru connectors have several additional advantages and improvements to traditional closed end modular plugs in assembly and termination:As conductors feed-thru the connector face, all are visibly inserted far enough to be pierced by the pin below – eliminates short wires or opens. · · · NEW Feed-Thru design simplifies connector to cable assembly · · Flush cut of excess conductors minimizes inadvertent contact outside of the plug · · 8 position, 8 contact RJ-45 modular plug for CAT5e, 100 balanced twisted pair 250 MHz cables · · Permanent connection – once crimped they cannot be reused.
