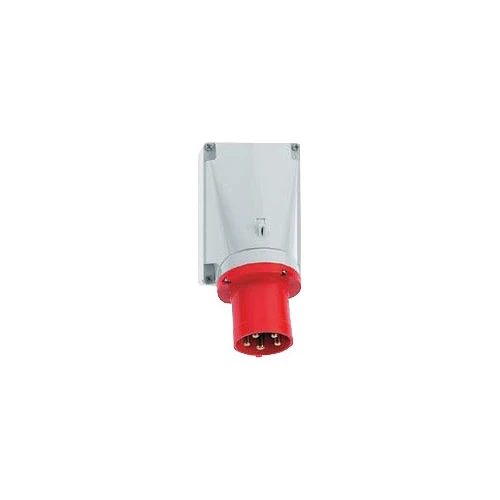

CEENorm Appliance Inlet Surface 3P+N+E IP44 63A 415V Red
CEENorm Appliance Inlet Surface 3P+N+E IP44 63A 415V Red
CEENorm Appliance Inlet Surface 3P+N+E IP44 63A 415V Red - Image 2

CEENorm Appliance Inlet Surface 3P+N+E IP44 63A 415V Red

£135.65 Incl. VAT

CEENorm Surface Mounting Appliance Inlet with screw/clamp terminals and pilot contact. This pilot contact should not be counted as a main pin. · · · With screw/clamp terminals and pilot contact · · Pilot contact should not be counted as a main pin · · IP44 Splashproof Protection rated

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 24134 Categories: , , , Brand: Product Code: 2500037467

Description

Technical Specifications  Technical Specifications CEE appliance inlet Material Plastic Degree of protection (IP rating) IP44 Connection system Screwed terminal Voltage acc. EN 60309-2 400 V (50+60 Hz) red Angle of plug Angled Identification colour Red Contact material CuZn Surface finish contacts Untreated Clock hour position 6 h Number of poles 5 IEC-amperage 63 A Amperage acc. UL/CSA (for UL-version) – A Rated frequency – Hz RAL number 3000 Rated voltage – V Phase inverter No Military model No · Technical Data Sheet – Click to Download
