Industrial Plugs & Sockets

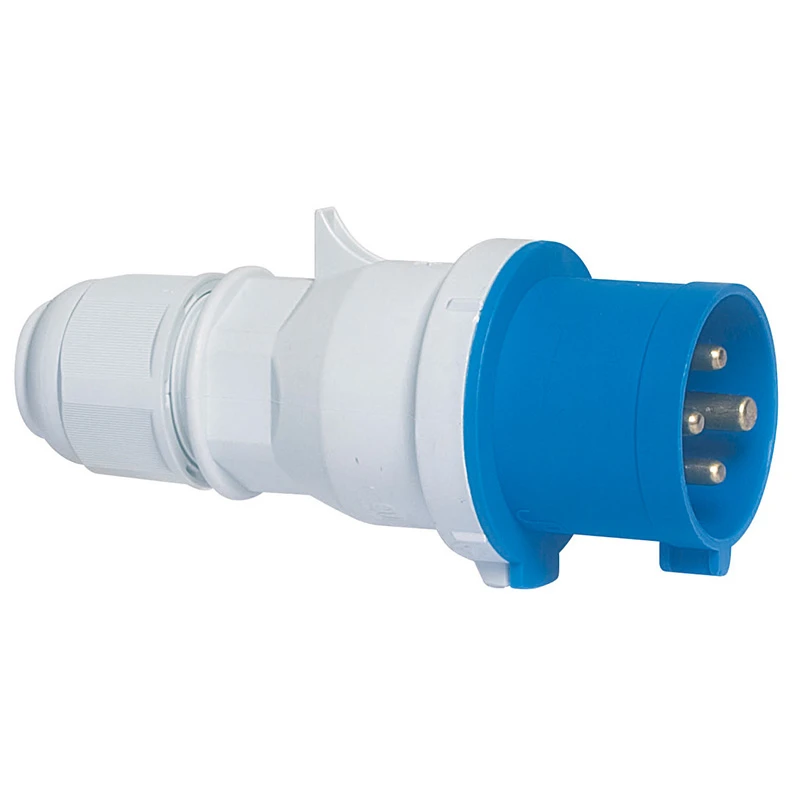

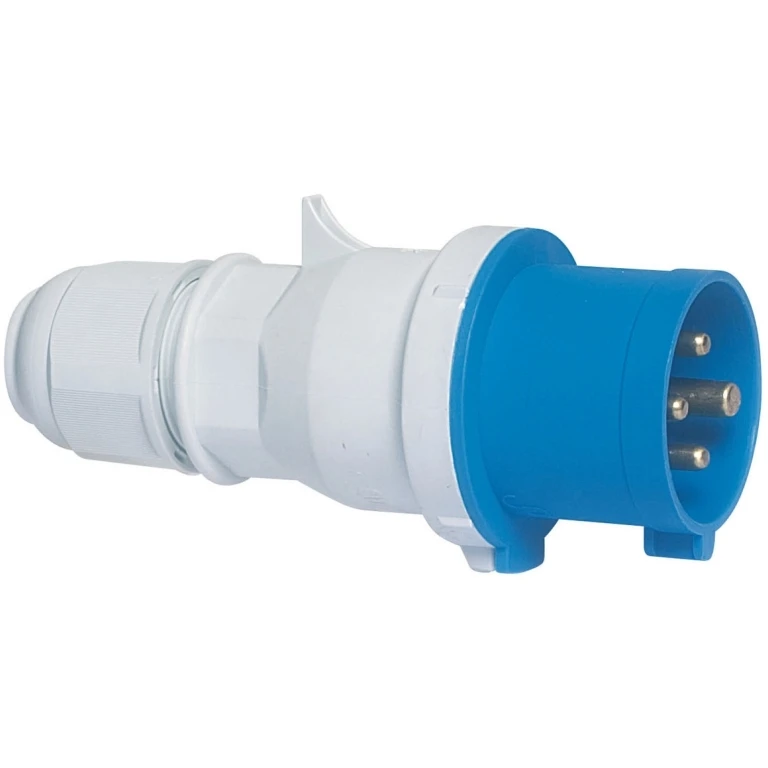

CEENorm Plug 16A 230V 4 Pole IP44

Brand: CEENormProduct code: 2129Go Magpie Ref: 5060062452305

The contact carrier is made of polyamide, the contacts are brass,With a maximum conductor size of 2,5 mm.Multi-Grip cable gland with gasket and integrated strain relief. Screwless housing connection with snap fastening. For cable diameter from 8 up to max. 18 mm.Made with BALS Multi-Grip cable gland which features a rubber seal which is firmly molded on so that it facilitates connection. This means no additional seals and rings are required. The 18 flexible laminae adapt to the cable diameter. The Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable. · · · QUICK-CONNECT plugs have two sealing screws to secure the contact carrier to the housing · · Pressing the contact slide with your finger closes the terminal · · Lock engages automatically, and securely on closing · · Lock can be opened by turning clockwise with a screwdriver

£26.30inc VAT£21.92 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications CEE plug Material Plastic Degree of protection (IP rating) IP44 Connection system Screw less terminal Identification colour Blue Angle of plug Straight Voltage acc. EN 60309-2 230 V (50+60 Hz) blue Cable entry Swivel Contact material CuZn Surface finish contacts Untreated RAL number 5015 Clock hour position 9 h Amperage acc. UL/CSA (for UL-version) – A IEC-amperage 16 A Number of poles 4 Military model No Phase inverter No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
