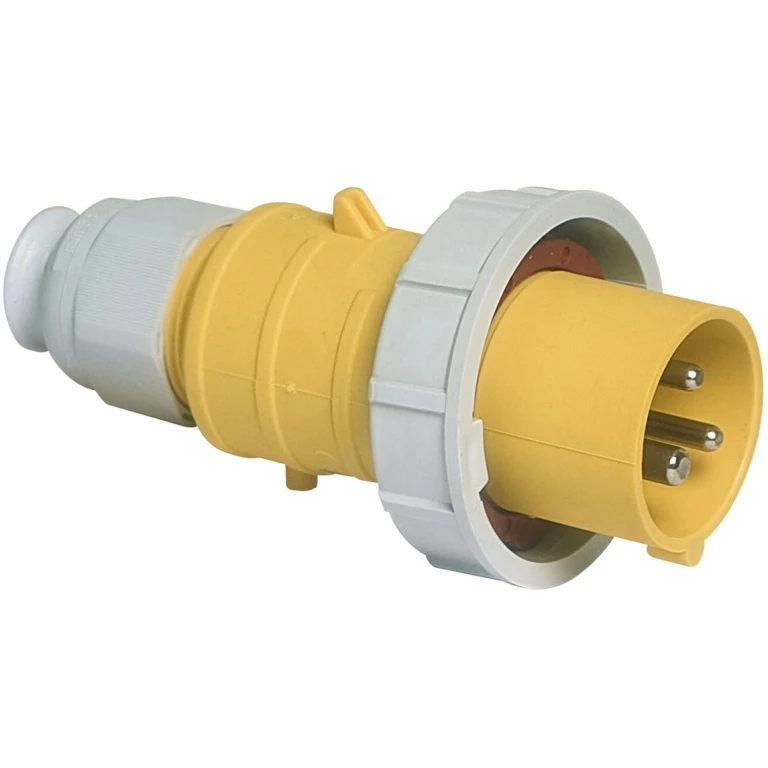

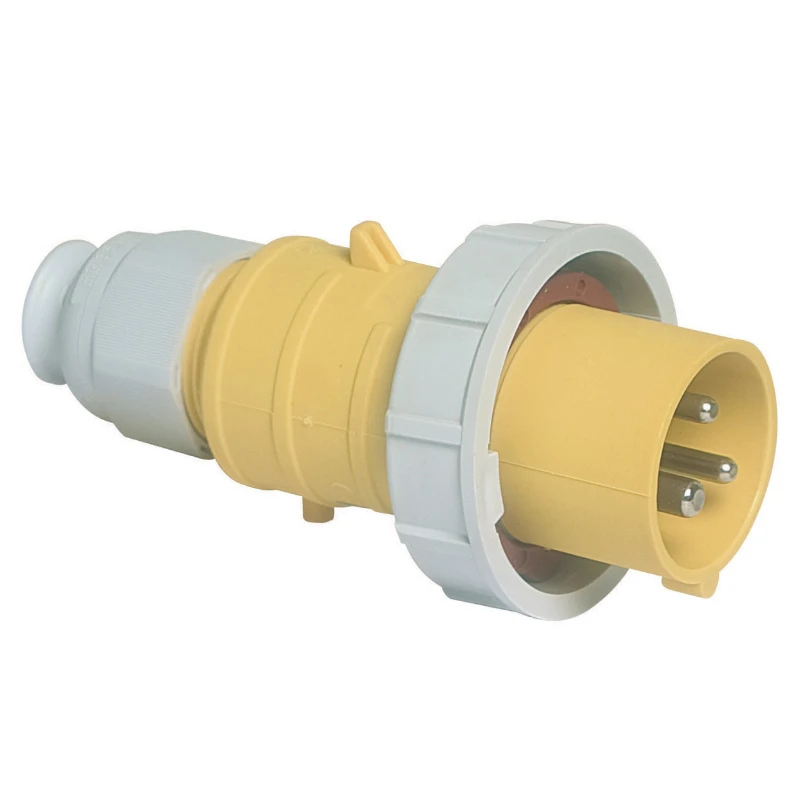

CEENorm Plug 32A 110V 3 Pole IP67
£51.71 Incl. VAT
32A 110V 3 Pole IP67 4H with “Quick Connect” screwless terminals plug. Enclosure made of Polyamide,The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated with a maximum conductor size of 6,0 mm.For cable diameter from 11 up to max. 23,5 mm. Multi-Grip cable gland with gasket, integrated cable clamp and additional water evacuation openings.Made with BALS “Multi-Grip” cable gland which features a rubber seal which is firmly molded on so that it facilitates connection. This means no additional seals and rings are required. The 18 flexible laminae adapt to the cable diameter. The Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable. · · · QUICK-CONNECT plugs have two sealing screws to secure the contact carrier to the housing · · Pressing the contact slide with your finger closes the terminal · · Lock engages automatically, and securely on closing · · Lock can be opened by turning clockwise with a screwdriver
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications CEE plug Connection system Screw less terminal Material Plastic Degree of protection (IP rating) IP67 Surface finish contacts Nickel-plated Angle of plug Straight Voltage acc. EN 60309-2 110 V (50+60 Hz) yellow Cable entry Swivel Identification colour Yellow Contact material CuZn Number of poles 3 Amperage acc. UL/CSA (for UL-version) – A Clock hour position 4 h IEC-amperage 32 A RAL number 1012 Phase inverter No Military model No · Technical Data Sheet – Click to Download
