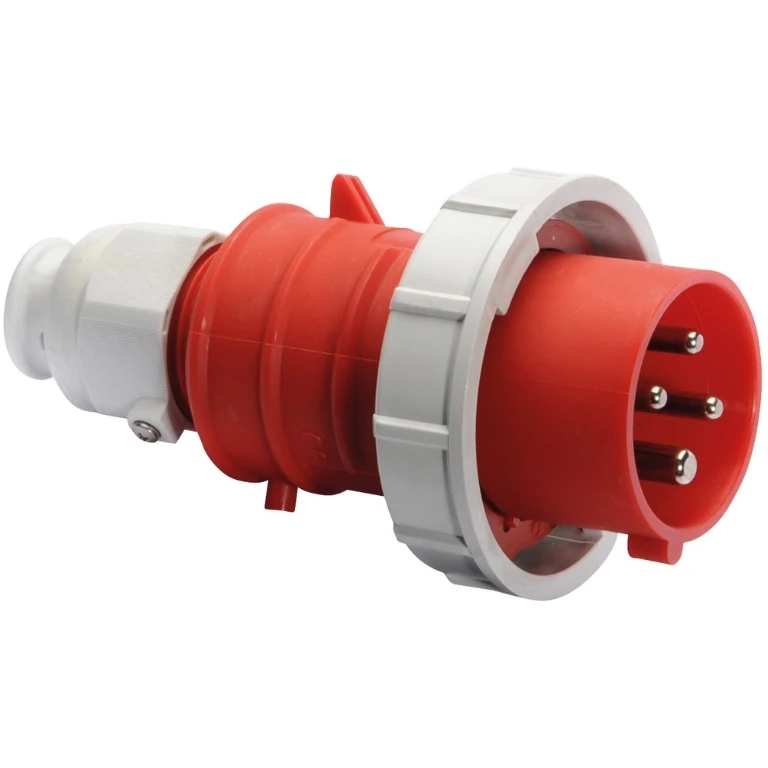

CEENorm Plug 32A 400V 4 Pole IP67
£58.51 Incl. VAT
The contact carrier is made of polyamide, the contacts are brass,With a maximum conductor size of 2,5 mm.Multi-Grip cable gland with gasket and integrated strain relief. Screwless housing connection with snap fastening. For cable diameter from 8 up to max. 18 mm.Made with BALS Multi-Grip cable gland which features a rubber seal which is firmly molded on so that it facilitates connection. This means no additional seals and rings are required. The 18 flexible laminae adapt to the cable diameter. The Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable. · · · QUICK-CONNECT plugs have two sealing screws to secure the contact carrier to the housing · · Pressing the contact slide with your finger closes the terminal · · Lock engages automatically, and securely on closing · · Lock can be opened by turning clockwise with a screwdriver
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications CEE plug Material Plastic Connection system Screw less terminal Surface finish contacts Nickel-plated Degree of protection (IP rating) IP67 Voltage acc. EN 60309-2 400 V (50+60 Hz) red Angle of plug Straight Cable entry Swivel Identification colour Red Contact material CuZn Number of poles 4 RAL number 3000 Clock hour position 6 h Amperage acc. UL/CSA (for UL-version) – A IEC-amperage 32 A Military model No Phase inverter No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
