CEENorm Socket Panel 2P+E IP44
CEENorm Socket Panel 2P+E IP44

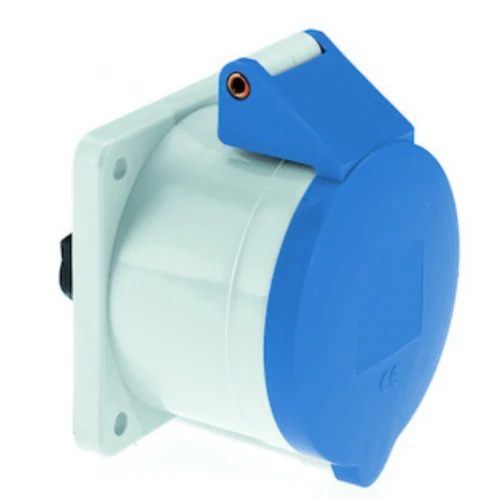

CEENorm Socket Panel 2P+E IP44 - Image 2

CEENorm Socket Panel 2P+E IP44

£17.46 Incl. VAT

CEENorm UK 131 Socket Panel 2P+E IP44 16A 240V Blue · · · Product: Panel Socket · · Pole Configuration: Double Pole + Earth (2P+E) · · Number of Gangs: 1 · · Number of Ways: 1 · · Number of Pins: 3 · · Pin Shape: Round · · Clock Reference: 6 · · c/w Cable: N · · Ingress Protection: IP44 · · Low Voltage?: N

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 131 Brand: Product Code: 2500039193

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Degree of protection (IP rating) IP44 Angle of plug Straight Identification colour Blue Connection system Screwed terminal Voltage acc. EN 60309-2 230 V (50+60 Hz) blue Surface finish contacts Untreated Contact material CuZn Clock hour position 6 h Drill hole distance vertical 44 mm Drill hole distance horizontal 44 mm Flange size vertical 56 mm Flange size horizontal 56 mm Number of poles 3 Amperage acc. UL/CSA (for UL-version) – A IEC-amperage 16 A RAL number 5015 Rated frequency 50 – 60 Hz Rated voltage – V Military model No · Technical Data Sheet – Click to Download
