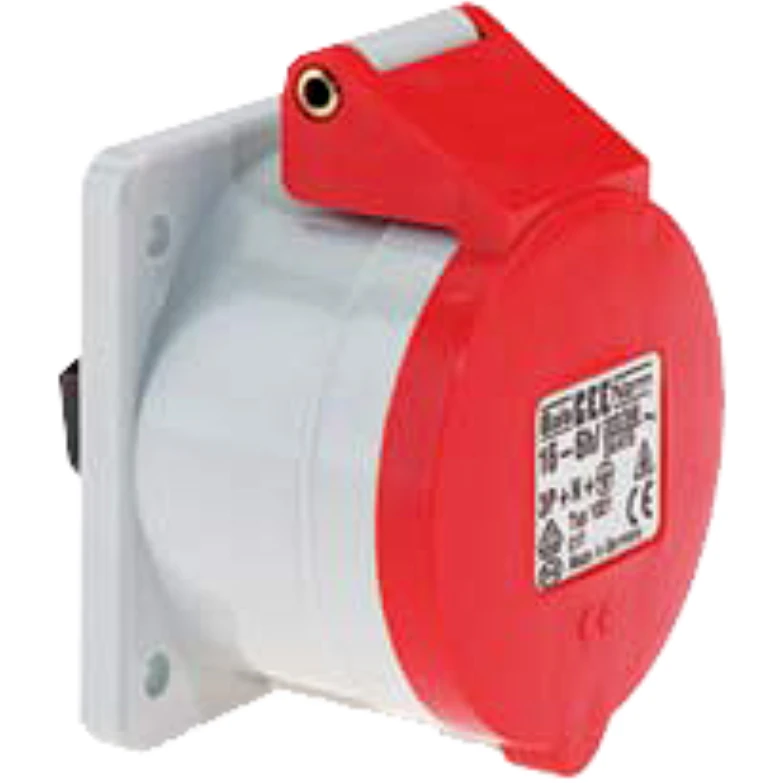

CEENorm Socket Panel 3P+E IP44 16A 415V Red

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Degree of protection (IP rating) IP44 Voltage acc. EN 60309-2 400 V (50+60 Hz) red Angle of plug Straight Connection system Screwed terminal Identification colour Red Surface finish contacts Untreated Contact material CuZn Number of poles 4 Amperage acc. UL/CSA (for UL-version) – A Clock hour position 6 h IEC-amperage 16 A Drill hole distance vertical 52 mm Drill hole distance horizontal 52 mm Flange size vertical 72 mm Flange size horizontal 65 mm RAL number 3000 Rated frequency – Hz Rated voltage – V Military model No
