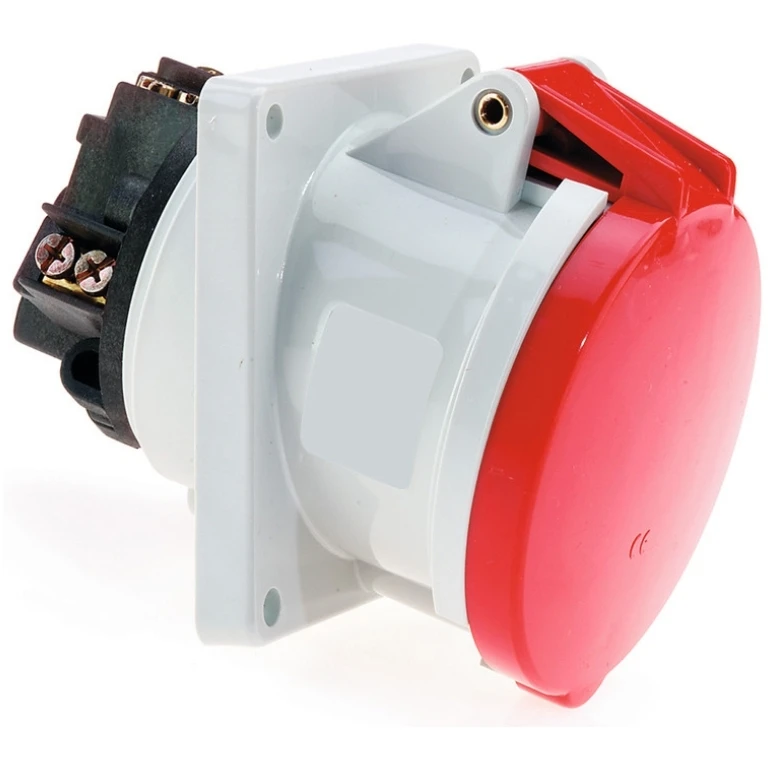

CEENorm Socket Panel 3P+E IP44 63A 415V Red

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Degree of protection (IP rating) IP44 Surface finish contacts Nickel-plated Connection system Screwed terminal Voltage acc. EN 60309-2 400 V (50+60 Hz) red Identification colour Red Angle of plug Angled Number of poles 4 Contact material CuZn Amperage acc. UL/CSA (for UL-version) – A IEC-amperage 63 A Drill hole distance horizontal 90 mm Drill hole distance vertical 90 mm Flange size vertical 114 mm Flange size horizontal 114 mm Clock hour position 6 h RAL number 3000 Rated frequency – Hz Rated voltage – V Military model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
